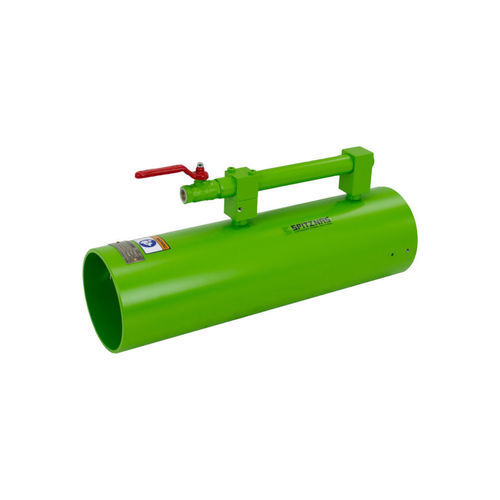

ATEX air mover 8 1616 0010

Product description
These pneumatic air movers operate on the venturi principle and provide maintenance-free, wear-free airflow for industrial applications. The integrated handle facilitates mobile use across multiple sites and applications. Earthing required.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 2-6 bar
• Nominal diameter: 125.00 mm
• ATEX: II2GExhIIBT6Gb

Technical Data
ORDER NO.: 8 1616 0010
ATEX Specification: II2GExhIIBT6Gb
Energy source: Pneumatic
Operating pressure: 2-6 bar
Nominal diameter: 125.00 mm
Volume flow (unrestricted blowing) at 2 bar: 10.9 m³/min
Volume flow (unrestricted blowing) at 3 bar: 14.9 m³/min
Volume flow (unrestricted blowing) at 4 bar: 19.6 m³/min
Volume flow (unrestricted blowing) at 5 bar: 23.3 m³/min
Volume flow (unrestricted blowing) at 6 bar: 26.2 m³/min
Volume flow (unrestricted sucking) at 2 bar: 8.3 m³/min
Volume flow (unrestricted sucking) at 3 bar: 12.0 m³/min
Volume flow (unrestricted sucking) at 4 bar: 15.6 m³/min
Volume flow (unrestricted sucking) at 5 bar: 19.2 m³/min
Volume flow (unrestricted sucking) at 6 bar: 20.8 m³/min
Air consumption (at 2-6 bar): 1.7-2.4 m³/min
Length: 425.00 mm
Material of housing: Aluminium
Connection: G3/8" female
Noise level LpA: 101.1 dB(A)
Weight: 3.86 kg
Fields of application / branch: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction

Accessories

• Earthing cable — Order No. 9 3707 0020 (Earthing cable complete)
• Air duct, plastic, nominal dia. 125 mm, 5 m — Order No. 9 3709 1140

Technical specifications

• Order number: 8 1616 0010
• ATEX specification: II2GExhIIBT6Gb
• Energy source: Pneumatic
• Operating pressure: 2-6 bar
• Nominal diameter: 125.00 mm
• Volume flow (blowing) 2 bar: 10.9 m³/min; 3 bar: 14.9 m³/min; 4 bar: 19.6 m³/min; 5 bar: 23.3 m³/min; 6 bar: 26.2 m³/min
• Volume flow (sucking) 2 bar: 8.3 m³/min; 3 bar: 12.0 m³/min; 4 bar: 15.6 m³/min; 5 bar: 19.2 m³/min; 6 bar: 20.8 m³/min
• Air consumption (2-6 bar): 1.7-2.4 m³/min
• Length: 425.00 mm
• Material of housing: Aluminium
• Connection: G3/8" female
• Noise level LpA: 101.1 dB(A)
• Weight: 3.86 kg
• Fields of application: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction
