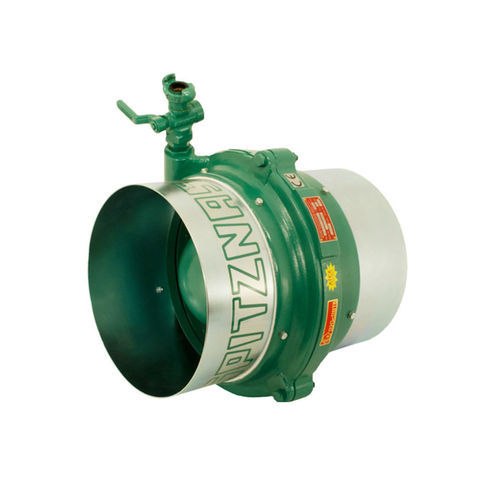

Axial fan 8 1532 0300

pneumaticfor pneumatic conveyinghigh-flow

Product description
Pneumatic-powered axial fan with a 400 mm nominal diameter designed for increased conveying volume. Requires earthing. Suitable for oil-free air supply and certified for use in ATEX zones (II2GExhIIBT6Gb).

Main attributes

• Energy source: Pneumatic
• Operating pressure: 4 bar
• Nominal diameter: 400 mm
• ATEX: II2GExhIIBT6Gb

Accessories

• Order no. 8 1502 9015 — Protective grill
• Order no. 8 1502 9010 — Protective grill (incl. assembling screws)
• Order no. 9 3001 0020 — Flange according to DIN 21 603
• Order no. 9 3709 0270 — Connecting piece, antistatic
• Order no. 9 3709 0310 — Quick collar, antistatic
• Order no. 9 3709 0230 — Air duct, antistatic, 5m
• Order no. 9 3707 0020 — Earthing cable complete

Fields of application / branch

• Energy and pipeline construction
• Metal industry and steel construction
• Plant and mechanical construction

Specifications / Technical data

• Order no.: 8 1532 0300
• ATEX Specification: II2GExhIIBT6Gb
• Energy source: Pneumatic
• Operating pressure: 4 bar
• Nominal diameter: 400 mm
• Volume flow (unrestricted): 2.70 m³/s
• Air consumption: 2.11 m³/min
• Length: 417.00 mm
• Speed (free): 3,450 rpm
• Quality of air: oil free
• Connection: Claw coupling 3/4" female
• Noise level LpA: 92.0 dB(A)
• Noise level LWA: 103.0 dB(A)
• Weight: 32.0 kg
