Axial fan 8 1531 0300ductcoolingextraction
Add to favorites
Compare this product
Characteristics
- Configuration
- axial
- Type
- duct
- Function
- cooling, extraction
- Drive mechanism
- pneumatic
- Material
- aluminum, cast aluminum
- Applications
- for marine applications, for business, for tunnel, industrial, commercial
- Other characteristics
- high-flow, corrosion-resistant, explosion-proof, ATEX
- Air flow
Min.: 0 m³/s
(0 ft³/s)Max.: 1.53 m³/s
(54.031 ft³/s)- Diameter
300 mm
(11.811 in)- Rotational speed
5,000 rpm
(31,416 rad.min-1)- Noise level
Min.: 101 dB
Max.: 112 dB
Description

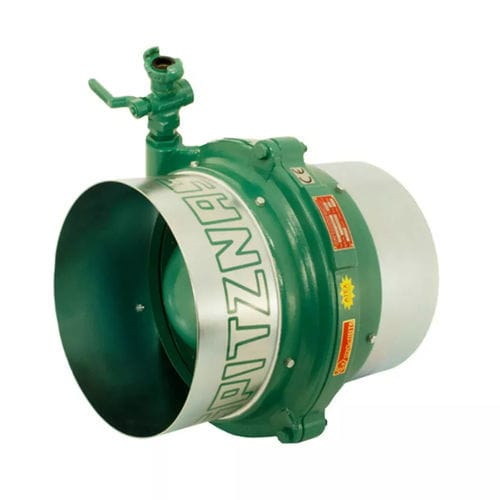

Stationary pneumatic axial fan with 300 mm nominal diameter for various ventilation work. Suitable for e. g. tank aeration, cleaning work and many other applications in explosive areas.
Earthing required.
