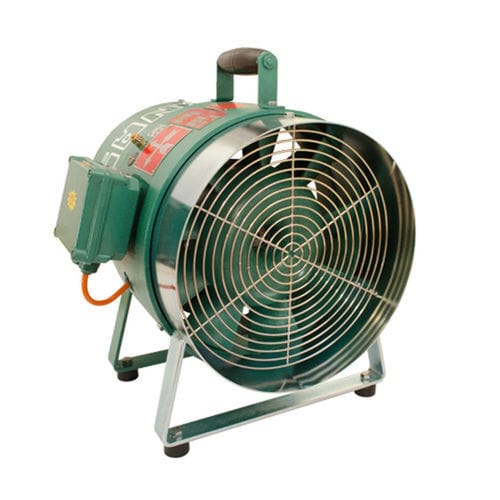

Axial fan 8 1020 0140

mobile400VACelectrically-powered

Product overview
Electric axial fan designed for use in potentially explosive atmospheres. Nominal diameter 300 mm, ATEX classification II2GExhIIBT3Gb and protection class IP55. Supplied without switch, cable or plug; earthing required.

Main attributes

• Energy source: Electric
• Operating voltage: 400 V
• Nominal diameter: 300 mm
• ATEX: II2GExhIIBT3Gb
• Protection class: IP55
• Volume flow (unrestricted): 1.00 m³/s
• Motor input: 0.35 kW
• Speed (free): 2,840 1/min
• Noise level LpA: 85.7 dB(A)
• Weight: 20.0 kg

Technical data
ORDER NO.: 8 1020 0140
ATEX Specification: II2GExhIIBT3Gb
Energy source: Electric
Operating voltage: 400 Volt
Nominal diameter: 300.00 mm
Volume flow (unrestricted blowing): 1.00 m³/s
Motor input: 0.35 kW
Current consumption (400V): 0.92 A
Alternating current: 3 Phases
Frequency: 50 Hz
Safety class: IP 55
Protective system: EX-e-II-T4
Length: 390.00 mm
Speed (free): 2,840 1/min
Air connection dia. (smooth): 300.00 mm
Noise level LpA: 85.7 dB(A)
Vibration level: BV-3 m/s²
Weight: 20.0 kg
Fields of application / branch: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction

Accessories

• Protective grill — Order No.: 8 1601 2070
• Flange according to DIN 21 603 — Order No.: 9 3001 0010
• Connecting piece, antistatic — Order No.: 9 3709 0260
• Quick collar, antistatic (300) — Order No.: 9 3709 0300
• Lutte, antistatisch, 5m — Order No.: 9 3709 0220
• Adapter 300 → 80 — Order No.: 9 3703 0280
• Adapter 300 → 100 — Order No.: 9 3703 0290
• Adapter 300 → 150 — Order No.: 9 3703 0300
• Adapter 300 → 200 — Order No.: 9 3703 0050
• Earthing cable complete — Order No.: 9 3703 0050

Applications

• Energy and pipeline construction
• Metal industry and steel construction
• Plant and mechanical construction
