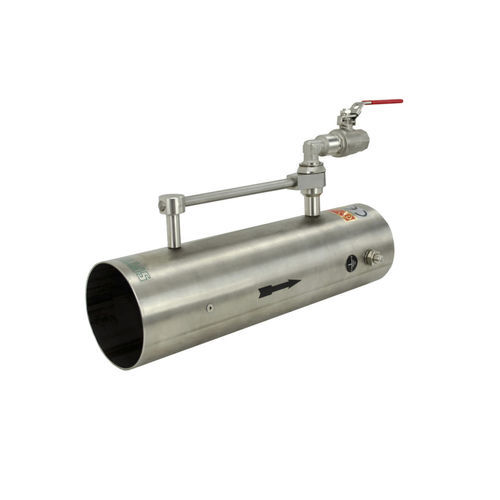

ATEX air mover 8 1634 0010

Product description
Operating on the Venturi principle, this pneumatic blower delivers maintenance-free, wear-free air supply and exhaust for industrial applications. The integrated handle enables mobile use across multiple sites. Grounding required.

Main features

• Power source: compressed air
• Operating pressure: 2–6 bar
• Nominal diameter: DN100 (100.00 mm)
• ATEX: II2GExhIIBT6Gb

Technical data
Order number: 8 1614 0010
ATEX marking: II2GExhIIBT6Gb
Power source: compressed air
Operating pressure: 2–6 bar
Nominal diameter: 100.00 mm
Free blowing flow at 2 bar: 8.2 m³/min
Free blowing flow at 3 bar: 11.7 m³/min
Free blowing flow at 4 bar: 14.9 m³/min
Free blowing flow at 5 bar: 17.7 m³/min
Free blowing flow at 6 bar: 20.5 m³/min
Free suction flow at 2 bar: 6.0 m³/min
Free suction flow at 3 bar: 8.2 m³/min
Free suction flow at 4 bar: 10.8 m³/min
Free suction flow at 5 bar: 13.8 m³/min
Free suction flow at 6 bar: 14.5 m³/min
Air consumption (2–6 bar): 1.6–2.3 m³/min
Overall length: 410.00 mm
Housing material: aluminium
Connection: G3/8" internal
Sound pressure level LpA: 100.8 dB(A)
Weight: 3.28 kg
Application sectors: plant and mechanical engineering; energy and pipeline construction; metal industry and steel construction

Accessories

• 9 3707 0020 – Earthing cable, complete

Technical characteristics / specifications

• Order number: 8 1614 0010
• ATEX marking: II2GExhIIBT6Gb
• Power source: compressed air
• Operating pressure: 2–6 bar
• Nominal diameter: 100.00 mm
• Free blowing flow (2/3/4/5/6 bar): 8.2 / 11.7 / 14.9 / 17.7 / 20.5 m³/min
• Free suction flow (2/3/4/5/6 bar): 6.0 / 8.2 / 10.8 / 13.8 / 14.5 m³/min
• Air consumption (2–6 bar): 1.6–2.3 m³/min
• Overall length: 410.00 mm
• Housing material: aluminium
• Connection: G3/8" internal
• Sound pressure level LpA: 100.8 dB(A)
• Weight: 3.28 kg
• Applications: plant and mechanical engineering; energy and pipeline construction; metal industry and steel construction
