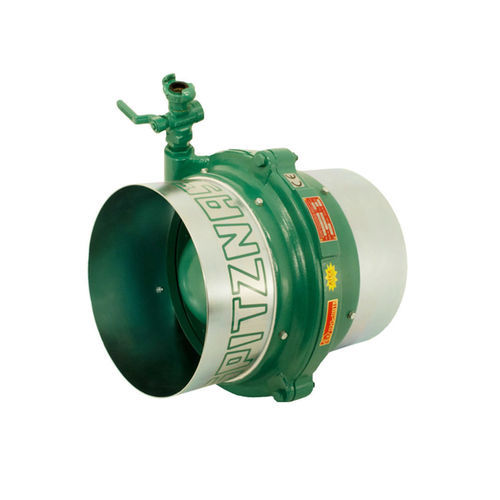

Axial fan 8 1534 0300

pneumaticfor industrial applicationsexplosion-proof

Product Summary
Our most powerful stationary pneumatic axial fan with a volume flow of more than 5 m³/s, suitable for all explosive zones of equipment group II, category 2. Earthing required.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 4 bar
• Nominal diameter: 600 mm
• ATEX: II2GExhIIBT6Gb

Technical Data
ORDER NO.: 8 1534 0300
ATEX Specification: II2GExhIIBT6Gb
Energy source: Pneumatic
Operating pressure: 4 bar
Nominal diameter: 600 mm
Volume flow (unrestricted): 5.83 m³/s
Air consumption: 3.84 m³/min
Length: 520.00 mm
Speed (free): 2,420 rpm
Quality of air: oil free
Connection: Claw coupling 3/4" female
Noise level LpA: 86.0 dB(A)
Noise level LWA: 97.0 dB(A)
Weight: 58.0 kg
Fields of application / branch: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction

Accessories
Protective grill
ORDER NO.: 8 1504 7010 - Protective grill
ORDER NO.: 8 1504 9010 - Protective grill (incl. assembling screws)

Flange according to DIN 21 603
ORDER NO.: 9 3001 0040 - Flange according to DIN 21 603

Connecting piece, antistatic
ORDER NO.: 9 3709 0290 - Connecting piece, antistatic

Quick collar, antistatic
ORDER NO.: 9 3709 0330 - Quick collar, antistatic

Air duct, antistatic, 5m
ORDER NO.: 9 3709 0250 - Air duct, antistatic, 5m

Earthing cable
ORDER NO.: 9 3707 0020 - Earthing cable complete

Technical specifications

• Order No.: 8 1534 0300
• ATEX Specification: II2GExhIIBT6Gb
• Energy source: Pneumatic
• Operating pressure: 4 bar
• Nominal diameter: 600 mm
• Volume flow (unrestricted): 5.83 m³/s
• Air consumption: 3.84 m³/min
• Length: 520.00 mm
• Speed (free): 2,420 rpm
• Quality of air: oil free
• Connection: Claw coupling 3/4" female
• Noise level LpA: 86.0 dB(A)
• Noise level LWA: 97.0 dB(A)
• Weight: 58.0 kg
• Fields of application: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction
