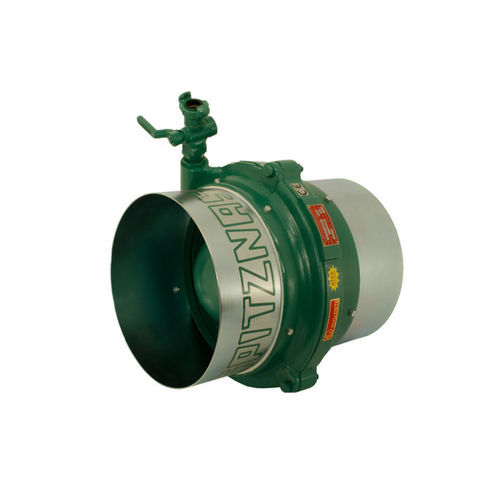

Axial fan 8 1533 0300

pneumaticindustrialfor pneumatic conveying

Product description
Built-in pneumatic axial fan for stationary use. Designed for increased conveying volume with a free volume flow >4 m³/s for explosion-protected areas (equipment group II, category 2). Earthing required.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 4 bar (max.)
• Nominal diameter: 500 mm
• ATEX: II2GExhIIBT6Gb
• Volume flow (unrestricted): 4.33 m³/s
• Air consumption: 2.73 m³/min
• Length: 515.00 mm
• Speed (free): 2,500 rpm
• Air quality: Oil free
• Connection: Claw coupling 3/4" female
• Noise LpA: 90.0 dB(A)
• Noise LWA: 101.0 dB(A)
• Weight: 46.0 kg

Technical data (table)
ORDER NO.: 8 1533 0300
ATEX Specification: II2GExhIIBT6Gb
Energy source: Pneumatic
Operating pressure: 4 bar
Nominal diameter: 500 mm
Volume flow (unrestricted): 4.33 m³/s
Air consumption: 2.73 m³/min
Length: 515.00 mm
Speed (free): 2,500 rpm
Air quality: Oil free
Connection: Claw coupling 3/4" female
Noise level LpA: 90.0 dB(A)
Noise level LWA: 101.0 dB(A)
Weight: 46.0 kg
Fields of application / branch: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction

Accessories

• 8 1503 7010 — Protective grill
• 8 1503 9010 — Protective grill (incl. assembling screws)
• 9 3001 0030 — Flange according to DIN 21 603
• 9 3709 0280 — Connecting piece, antistatic
• 9 3709 0320 — Quick collar, antistatic
• 9 3709 0240 — Air duct, antistatic, 5m
• 9 3707 0020 — Earthing cable complete

Characteristics / Technical specifications

• Order number: 8 1533 0300
• ATEX: II2GExhIIBT6Gb
• Energy source: Pneumatic
• Operating pressure max.: 4 bar
• Nominal diameter: 500 mm
• Volume flow: 4.33 m³/s
• Air consumption: 2.73 m³/min
• Length: 515 mm
• Speed (free): 2,500 rpm
• Air quality: Oil free
• Connection: Claw coupling 3/4" female
• Noise LpA: 90.0 dB(A)
• Noise LWA: 101.0 dB(A)
• Weight: 46.0 kg
