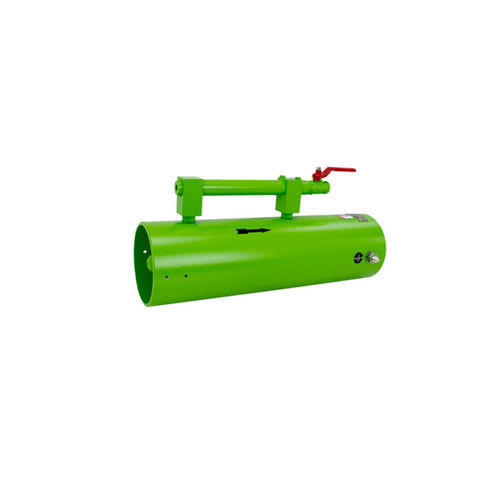

Ventilation unit 8 1620 0010

Description
Venturi-based pneumatic air mover designed for maintenance-free operation with no mechanical wear parts. Portable handling via integrated handle enables mobile use across multiple industrial applications. Earthing is required for safe operation in explosive atmospheres (ATEX certified).

Main attributes

• Energy source: Pneumatic
• Operating pressure: 2-6 bar
• Nominal diameter: 180.00 mm
• ATEX: II2GExhIIBT6Gb

Technical Data

• Order no.: 8 1620 0010
• ATEX specification: II2GExhIIBT6Gb
• Operating pressure: 2-6 bar
• Nominal diameter: 180.00 mm
• Volume flow (blowing) at 2 bar: 27.1 m³/min
• Volume flow (blowing) at 3 bar: 36.9 m³/min
• Volume flow (blowing) at 4 bar: 53.6 m³/min
• Volume flow (blowing) at 5 bar: 62.0 m³/min
• Volume flow (blowing) at 6 bar: 67.5 m³/min
• Volume flow (sucking) at 2 bar: 19.6 m³/min
• Volume flow (sucking) at 3 bar: 26.8 m³/min
• Volume flow (sucking) at 4 bar: 32.3 m³/min
• Volume flow (sucking) at 5 bar: 37.9 m³/min
• Volume flow (sucking) at 6 bar: 47.2 m³/min
• Air consumption (2-6 bar): 2.9-4.5 m³/min
• Length: 450.00 mm
• Material of housing: Aluminium
• Connection: G1/2" female
• Noise level LpA: 104.4 dB(A)
• Weight: 5.34 kg
• Fields of application: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction

Accessories

• Earthing cable — Order No.: 9 3707 0020 — Earthing cable complete

Specifications

• Order no.: 8 1620 0010
• ATEX specification: II2GExhIIBT6Gb
• Energy source: Pneumatic
• Operating pressure: 2-6 bar
• Nominal diameter: 180.00 mm
• Volume flow (blowing) at 2–6 bar: 27.1 / 36.9 / 53.6 / 62.0 / 67.5 m³/min
• Volume flow (sucking) at 2–6 bar: 19.6 / 26.8 / 32.3 / 37.9 / 47.2 m³/min
• Air consumption: 2.9-4.5 m³/min
• Length: 450.00 mm
• Material: Aluminium
• Connection: G1/2" female
• Noise level LpA: 104.4 dB(A)
• Weight: 5.34 kg
