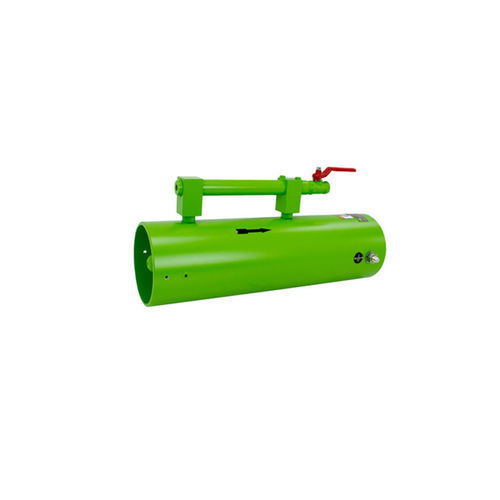

ATEX air mover 8 1622 0010
Add to favorites
Compare this product
Characteristics
- Other characteristics
- ATEX
Description
Description
Due to the venturi principle, these pneumatic venturi fans operate maintenance- and wear-free. The practical handle enables mobile use across universal applications. Earthing is required.
Main attributes
Technical data
Accessories
Characteristics / technical specifications
Due to the venturi principle, these pneumatic venturi fans operate maintenance- and wear-free. The practical handle enables mobile use across universal applications. Earthing is required.
Main attributes
- Energy source: Pneumatic
- Operating pressure: 2-6 bar
- Nominal diameter: 200.00 mm
- ATEX: II2GExhIIBT6Gb
- Practical carrying handle for mobile use
- Maintenance- and wear-free operation by venturi principle
Technical data
- Order no.: 8 1622 0010
- ATEX specification: II2GExhIIBT6Gb
- Energy source: Pneumatic
- Operating pressure: 2-6 bar
- Nominal diameter: 200.00 mm
- Volume flow (unrestricted blowing) at 2 bar: 37.7 m³/min
- Volume flow (unrestricted blowing) at 3 bar: 45.2 m³/min
- Volume flow (unrestricted blowing) at 4 bar: 54.3 m³/min
- Volume flow (unrestricted blowing) at 5 bar: 65.3 m³/min
- Volume flow (unrestricted blowing) at 6 bar: 78.3 m³/min
- Volume flow (unrestricted sucking) at 2 bar: 30.7 m³/min
- Volume flow (unrestricted sucking) at 3 bar: 37.7 m³/min
- Volume flow (unrestricted sucking) at 4 bar: 45.2 m³/min
- Volume flow (unrestricted sucking) at 5 bar: 54.4 m³/min
- Volume flow (unrestricted sucking) at 6 bar: 65.3 m³/min
- Air consumption (at 2-6 bar): 6.3-9.7 m³/min
- Length: 450.00 mm
- Material of housing: Aluminium
- Connection: G3/4" female
- Noise level LpA: 115.8 dB(A)
- Weight: 6.84 kg
- Fields of application / branch: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction
Accessories
- Earthing cable – Order No.: 9 3707 0020 (Earthing cable complete)
Characteristics / technical specifications
- Order no.: 8 1622 0010
- ATEX: II2GExhIIBT6Gb
- Energy source: Pneumatic
- Operating pressure: 2-6 bar
- Nominal diameter: 200.00 mm
- Volume flow blowing (2–6 bar): 37.7 / 45.2 / 54.3 / 65.3 / 78.3 m³/min
- Volume flow sucking (2–6 bar): 30.7 / 37.7 / 45.2 / 54.4 / 65.3 m³/min
- Air consumption (2-6 bar): 6.3-9.7 m³/min
- Length: 450.00 mm
- Material of housing: Aluminium
- Connection: G3/4" female
- Noise level LpA: 115.8 dB(A)
- Weight: 6.84 kg
- Fields of application: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction
