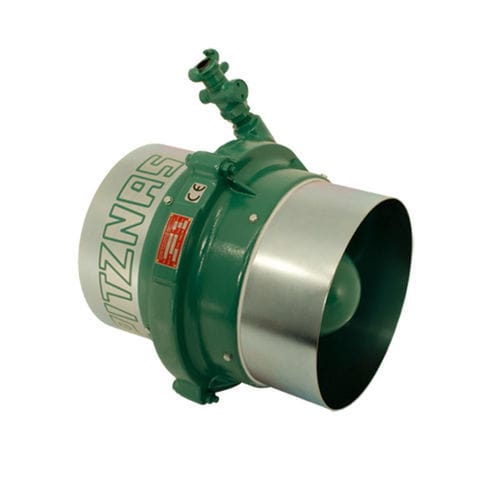

Axial fan 8 1501 0300

extractionventilationpneumatic

Product description
Stationary pneumatic axial fan with a nominal diameter of 300 mm for various ventilation and extraction tasks. Earthing required.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 4 bar
• Nominal diameter: 300 mm

Technical Data
ORDER NO.: 8 1501 0300
Energy source: Pneumatic
Operating pressure: 4 bar
Nominal diameter: 300 mm
Volume flow (unrestricted): 1.53 m³/s
Air consumption: 1.28 m³/min
Length: 407.00 mm
Quality of air: oil free
Noise level LpA: 101.0 dB(A)
Weight: 22.0 kg
Fields of application / branch: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction

Accessories

• 8 1501 7010 – Protective grill
• 8 1501 9010 – Protective grill (incl. assembling screws)
• 9 3001 0010 – Flange according to DIN 21 603
• 9 3709 0260 – Connecting piece, antistatic
• 9 3709 0300 – Quick collar, antistatic
• 9 3709 0220 – Air duct, antistatic, 5 m
• 9 3703 0280 – Adapter, nominal dia. 300 mm reducing to dia. 80 mm
• 9 3703 0290 – Adapter, nominal dia. 300 mm reducing to dia. 100 mm
• 9 3703 0300 – Adapter, nominal dia. 300 mm reducing to dia. 150 mm
• 9 3703 0050 – Adapter, nominal dia. 300 mm reducing to dia. 200 mm
• 9 3707 0020 – Earthing cable complete

Technical specifications

• Order no.: 8 1501 0300
• Energy source: Pneumatic
• Operating pressure: 4 bar
• Nominal diameter: 300 mm
• Volume flow (unrestricted): 1.53 m³/s
• Air consumption: 1.28 m³/min
• Length: 407.00 mm
• Quality of air: oil free
• Noise level LpA: 101.0 dB(A)
• Weight: 22.0 kg
• Fields of application: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction
