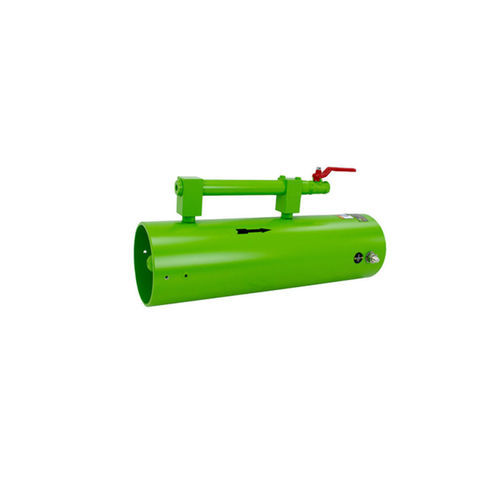

Dual-flow ventilation unit 8 1624 0010

Overview
Venturi-based pneumatic air mover providing wear-free operation and requiring no mechanical maintenance. Designed for mobile handling and universal industrial use; integrated handle for transport. Earthing required.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 2–6 bar
• Nominal diameter: 250.00 mm
• ATEX: II2GExhIIBT6Gb

Performance

• Volume flow (unrestricted blowing) at 2 bar: 39.4 m³/min
• Volume flow (unrestricted blowing) at 3 bar: 55.8 m³/min
• Volume flow (unrestricted blowing) at 4 bar: 67.2 m³/min
• Volume flow (unrestricted blowing) at 5 bar: 78.9 m³/min
• Volume flow (unrestricted blowing) at 6 bar: 88.7 m³/min
• Volume flow (unrestricted sucking) at 2 bar: 31.4 m³/min
• Volume flow (unrestricted sucking) at 3 bar: 47.1 m³/min
• Volume flow (unrestricted sucking) at 4 bar: 63.8 m³/min
• Volume flow (unrestricted sucking) at 5 bar: 73.6 m³/min
• Volume flow (unrestricted sucking) at 6 bar: 85.1 m³/min
• Air consumption (at 2–6 bar): 6.4–9.5 m³/min

Technical data

• Order number: 8 1624 0010
• ATEX specification: II2GExhIIBT6Gb
• Length: 450.00 mm
• Housing material: Aluminium
• Connection: G3/4" female
• Noise level LpA: 116.3 dB(A)
• Weight: 7.96 kg

Fields of application

• Energy and pipeline construction
• Metal industry and steel construction
• Plant and mechanical construction

Accessories

• Earthing cable complete (Order No.: 9 3707 0020)

Safety

• Earthing required
