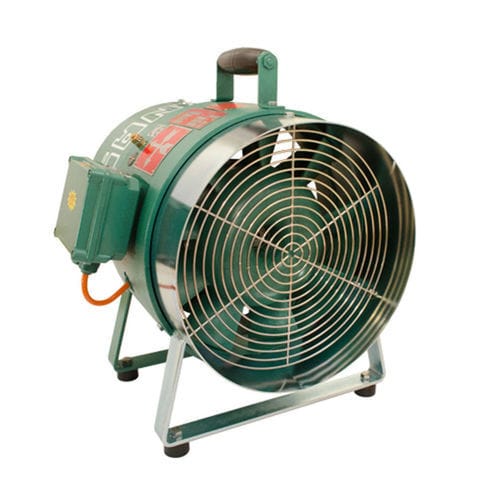

Axial fan 8 1020 0870

ductfor air circulationventilation

Description
Industrial electric axial fan designed for use in potentially explosive atmospheres. Nominal diameter 300 mm, protection class IP55 and certified ATEX II2GExhIIBT3Gb. Supplied without switch, cable or plug; earthing required. Suitable for duct and enclosure ventilation in plant engineering and process installations.

Main attributes

• Energy source: Electric
• Operating voltage: 230 V / 50 Hz
• Nominal diameter: 300 mm
• ATEX: II2GExhIIBT3Gb

Accessories

• Protective grill — Order No. 8 1601 2070
• Flange according to DIN 21 603 — Order No. 9 3001 0010
• Connecting piece, antistatic — Order No. 9 3709 0260
• Quick collar, antistatic (300) — Order No. 9 3709 0300
• Earthing strap, antistatic, 5 m — Order No. 9 3709 0220
• Adapter 300→80 — Order No. 9 3703 0280
• Adapter 300→100 — Order No. 9 3703 0290
• Adapter 300→150 — Order No. 9 3703 0300
• Adapter 300→200 — Order No. 9 3703 0050
• Earthing cable complete — Order No. 9 3703 0050

Technical specifications

• Order no.: 8 1020 0870
• ATEX specification: II2GExhIIBT3Gb
• Energy source: Electric
• Operating voltage: 230 V
• Nominal diameter: 300.00 mm
• Volume flow (unrestricted): 1.00 m³/s
• Motor input: 0.37 kW
• Current consumption (230 V): 2.20 A
• Phase: 1 (single-phase)
• Frequency: 50 Hz
• Protection class: IP55
• Protective system: EX-e-II-T4
• Length: 390.00 mm
• Free speed: 2,845 1/min
• Air connection diameter (smooth): 300.00 mm
• Noise level LpA: 84.8 dB(A)
• Vibration level: 3 m/s² (BV-3)
• Weight: 20.5 kg

Applications

• Energy and pipeline construction
• Metal industry and steel construction
• Plant and mechanical engineering

Installation & safety notes

• Earth connection mandatory prior to commissioning
• Delivered without switch, cable or plug — provide appropriate electrical accessories
• Observe local and ATEX regulations for equipment in explosive atmospheres and consult documentation before installation
