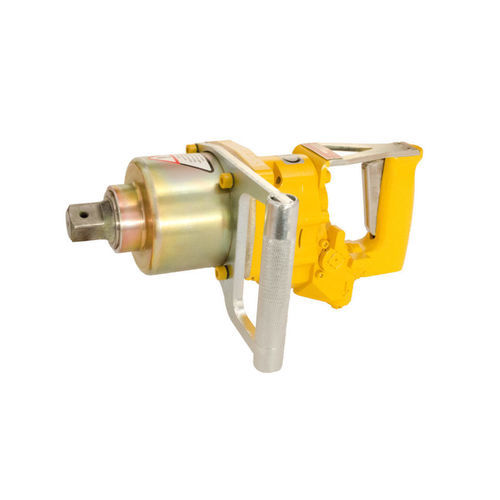

Hydraulic impact wrench 615200010

1"ATEXfor heavy-duty applications

Product description
Universally usable hydraulic impact wrench for closed circuit that can also be driven with HFA emulsion (min. 0.3%). Operating pressure: 180-260 bar (300 bar with HFA). Designed for heavy industrial use including underwater and mining environments; ATEX: IM2ExhIMbT5.

Main attributes

• Energy source: Hydraulic / HFA emulsion (min. 0.3%)
• Operating pressure: 180-260 (300 HFA) bar
• Square drive: 1"
• Max. torque: 3400 Nm
• Adjustable torque: 550-3400 Nm
• Volume flow: 9.5 l/min
• Underwater operation
• ATEX: IM2ExhIMbT5

Technical Data

• Order number: 6 1517 0010
• ATEX specification: IM2ExhIMbT5
• Energy source: Hydraulic / HFA emulsion (min. 0.3%)
• Operating pressure: 180-260 (300 HFA) bar
• Square drive: 1"
• Screws up to: M39 mm
• Volume flow: 9.5 l/min
• Max. torque: 3400 Nm
• Adjustable torque: 550-3400 Nm
• Distance center to outer edge: 52.50 mm
• Impacts: 1200 rpm
• Width without 2nd handle: 112.00 mm
• Hydraulic hose connection: STECKO-10
• Hydraulic medium: Hydraulic oil
• Hydraulic circuit: closed circuit
• Oil filtration: ISO-level of purity 20/18/13
• Temperature of oil: -34 up to +82 °C
• Viscosity of oil: >13 centistokes
• Noise level LpA: 102.0 dB(A)
• Noise level LWA: 113.0 dB(A)
• Vibration level: 14.0 m/s²
• Weight: 9.3 kg
• Fields of application: Energy and pipeline construction; Metal industry and steel construction; Mining; Plant and mechanical construction; Underwater work

Accessories
Hexagon sockets, standard length

• 9 1408 0580 — Hexagon socket, standard length — Square drive: 1" — Wrench width SW: 24 mm — Length: 55.00 mm — Diameter: 42.50 mm
• 9 1408 0590 — Hexagon socket, standard length — Square drive: 1" — Wrench width SW: 27 mm — Length: 55.00 mm — Diameter: 46.00 mm
• 9 1408 0600 — Hexagon socket, standard length — Square drive: 1" — Wrench width SW: 30 mm — Length: 57.00 mm — Diameter: 50.00 mm
• 9 1408 0610 — Hexagon socket, standard length — Square drive: 1" — Wrench width SW: 32 mm — Length: 57.00 mm — Diameter: 52.00 mm
• 9 1408 0620 — Hexagon socket, standard length — Square drive: 1" — Wrench width SW: 36 mm — Length: 60.00 mm — Diameter: 55.00 mm
• 9 1408 0630 — Hexagon socket, standard length — Square drive: 1" — Wrench width SW: 41 mm — Length: 64.00 mm — Diameter: 64.00 mm
• 9 1408 0640 — Hexagon socket, standard length — Square drive: 1" — Wrench width SW: 46 mm — Length: 69.00 mm — Diameter: 70.00 mm
• 9 1408 0650 — Hexagon socket, standard length — Square drive: 1" — Wrench width SW: 50 mm — Length: 72.00 mm — Diameter: 73.00 mm
• 9 1408 0660 — Hexagon socket, standard length — Square drive: 1" — Wrench width SW: 55 mm — Length: 76.00 mm — Diameter: 82.00 mm
• 9 1408 0670 — Hexagon socket, standard length — Square drive: 1" — Wrench width SW: 60 mm — Length: 82.00 mm — Diameter: 86.00 mm
• 9 1408 0680 — Hexagon socket, standard length — Square drive: 1" — Wrench width SW: 65 mm — Length: 85.00 mm — Diameter: 92.00 mm

Hexagon sockets, extra long

• 9 1408 0690 — Hexagon socket, extra long — Square drive: 1" — Wrench width SW: 24 mm — Length: 100.00 mm — Diameter: 42.00 mm
• 9 1408 0700 — Hexagon socket, extra long — Square drive: 1" — Wrench width SW: 27 mm — Length: 100.00 mm — Diameter: 46.00 mm
• 9 1408 0710 — Hexagon socket, extra long — Square drive: 1" — Wrench width SW: 30 mm — Length: 100.00 mm — Diameter: 50.00 mm
• 9 1408 0720 — Hexagon socket, extra long — Square drive: 1" — Wrench width SW: 32 mm — Length: 100.00 mm — Diameter: 51.00 mm
• 9 1408 0730 — Hexagon socket, extra long — Square drive: 1" — Wrench width SW: 36 mm — Length: 100.00 mm — Diameter: 54.00 mm
• 9 1408 0740 — Hexagon socket, extra long — Square drive: 1" — Wrench width SW: 41 mm — Length: 100.00 mm — Diameter: 63.00 mm
• 9 1408 0750 — Hexagon socket, extra long — Square drive: 1" — Wrench width SW: 46 mm — Length: 100.00 mm — Diameter: 70.00 mm
• 9 1408 0760 — Hexagon socket, extra long — Square drive: 1" — Wrench width SW: 50 mm — Length: 110.00 mm — Diameter: 75.00 mm
• 9 1408 0770 — Hexagon socket, extra long — Square drive: 1" — Wrench width SW: 55 mm — Length: 112.00 mm — Diameter: 80.00 mm
• 9 1408 0780 — Hexagon socket, extra long — Square drive: 1" — Wrench width SW: 60 mm — Length: 114.00 mm — Diameter: 85.00 mm

Hexagon sockets for allen head screws

• 9 1424 0440 — Hexagon socket for allen head screws — Square drive: 1" — Wrench width SW: 17 mm — Length: 75.00 mm — Diameter: 54.00 mm
• 9 1424 0450 — Hexagon socket for allen head screws — Square drive: 1" — Wrench width SW: 19 mm — Length: 75.00 mm — Diameter: 54.00 mm
• 9 1424 0460 — Hexagon socket for allen head screws — Square drive: 1" — Wrench width SW: 22 mm — Length: 75.00 mm — Diameter: 54.00 mm
• 9 1424 0470 — Hexagon socket for allen head screws — Square drive: 1" — Wrench width SW: 24 mm — Length: 75.00 mm — Diameter: 54.00 mm

Extensions

• 9 1420 0140 — Extension — Tool square drive: 1" — Output square drive: 1" — Length: 175.00 mm — Diameter: 54.00 mm
• 9 1420 0150 — Extension — Tool square drive: 1" — Output square drive: 1" — Length: 250.00 mm — Diameter: 54.00 mm
• 9 1420 0160 — Extension — Tool square drive: 1" — Output square drive: 1" — Length: 330.00 mm — Diameter: 54.00 mm

Universal joint

• 9 1422 090 — Universal joint — Tool square drive: 1" — Output square drive: 1" — Length: 100.00 mm — Diameter: 54.00 mm

Miscellaneous Accessories

• 9 9902 0120 — Multi oil for cleaning and protection
• More accessories on request.

Technical specifications

• Order number: 6 1517 0010
• ATEX: IM2ExhIMbT5
• Energy source: Hydraulic / HFA emulsion (min. 0.3%)
• Operating pressure: 180-260 (300 HFA) bar
• Square drive: 1"
• Max. torque: 3400 Nm
• Adjustable torque: 550-3400 Nm
• Volume flow: 9.5 l/min
• Screws up to: M39 mm
• Hydraulic circuit: closed circuit
• Hydraulic medium: Hydraulic oil
• Hydraulic hose connection: STECKO-10
• Oil filtration: ISO 20/18/13
• Oil temperature: -34 to +82 °C
• Viscosity: >13 cSt
• Noise LpA/LWA: 102.0 / 113.0 dB(A)
• Vibration level: 14.0 m/s²
• Weight: 9.3 kg
