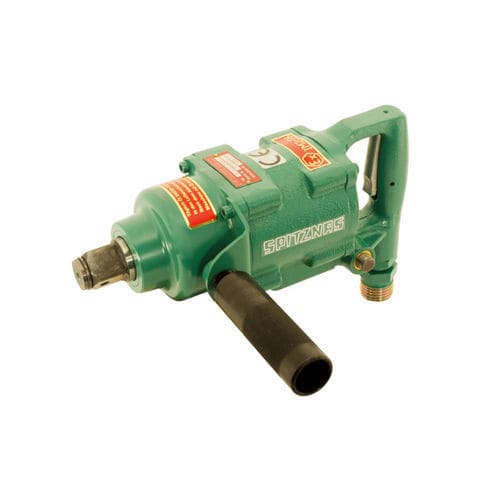

Pneumatic impact wrench 6 1411 0010

1"ATEXfor heavy-duty applications

Product description
1" pneumatic impact wrench, model 6 1411 0010, designed for heavy industrial and underground mining applications. Certified for use in ATEX area of equipment group I (IM2ExhIMbT6).

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Square drive: 1"
• Torque max.: 1,500 Nm
• Suitable for underground mining
• ATEX: IM2ExhIMbT6

Technical Data (table)
ORDER NO.: 6 1411 0010
ATEX Specification: IM2ExhIMbT6
Energy source: Pneumatic
Operating pressure: 6 bar
Square drive: 1"
Screws up to: M36 mm
Air consumption: 1.60 m³/min
Max. torque: 1,500 Nm
Distance center to outer edge: 57.00 mm
Connection: R1/2" female
Noise level LpA: 92.0 dB(A)
Noise level LWA: 101.0 dB(A)
Vibration level: 6.2 m/s²
Weight: 13.5 kg
Fields of application / branch: Energy and pipeline construction; Metal industry and steel construction; Mining; Plant and mechanical construction

Accessories (selection)
Hexagon sockets, standard length (table)
ORDER NO. | Description | Square drive [inch] | Wrench width SW [mm] | Length [mm] | Diameter [mm]
9 1408 0580 | Hexagon socket, standard length | 1" | 24 | 55.00 | 42.50
9 1408 0590 | Hexagon socket, standard length | 1" | 27 | 55.00 | 46.00
9 1408 0600 | Hexagon socket, standard length | 1" | 30 | 57.00 | 50.00
9 1408 0610 | Hexagon socket, standard length | 1" | 32 | 57.00 | 52.00
9 1408 0620 | Hexagon socket, standard length | 1" | 36 | 60.00 | 55.00
9 1408 0630 | Hexagon socket, standard length | 1" | 41 | 64.00 | 64.00
9 1408 0640 | Hexagon socket, standard length | 1" | 46 | 69.00 | 70.00
9 1408 0650 | Hexagon socket, standard length | 1" | 50 | 72.00 | 73.00
9 1408 0660 | Hexagon socket, standard length | 1" | 55 | 76.00 | 82.00
9 1408 0670 | Hexagon socket, standard length | 1" | 60 | 82.00 | 86.00
9 1408 0680 | Hexagon socket, standard length | 1" | 65 | 85.00 | 92.00

Hexagon sockets, extra long (table)
ORDER NO. | Description | Square drive [inch] | Wrench width SW [mm] | Length [mm] | Diameter [mm]
9 1408 0690 | Hexagon socket, extra long | 1" | 24 | 100.00 | 42.00
9 1408 0700 | Hexagon socket, extra long | 1" | 27 | 100.00 | 46.00
9 1408 0710 | Hexagon socket, extra long | 1" | 30 | 100.00 | 50.00
9 1408 0720 | Hexagon socket, extra long | 1" | 32 | 100.00 | 51.00
9 1408 0730 | Hexagon socket, extra long | 1" | 36 | 100.00 | 54.00
9 1408 0740 | Hexagon socket, extra long | 1" | 41 | 100.00 | 63.00
9 1408 0750 | Hexagon socket, extra long | 1" | 46 | 100.00 | 70.00
9 1408 0760 | Hexagon socket, extra long | 1" | 50 | 110.00 | 75.00
9 1408 0770 | Hexagon socket, extra long | 1" | 55 | 112.00 | 80.00
9 1408 0780 | Hexagon socket, extra long | 1" | 60 | 114.00 | 85.00

Hexagon sockets for allen head screws (table)
9 1424 0440 | Hexagon socket for allen head screws | 1" | 17 | 75.00 | 54.00
9 1424 0450 | Hexagon socket for allen head screws | 1" | 19 | 75.00 | 54.00
9 1424 0460 | Hexagon socket for allen head screws | 1" | 22 | 75.00 | 54.00
9 1424 0470 | Hexagon socket for allen head screws | 1" | 24 | 75.00 | 54.00

Extensions (table)
9 1420 0140 | Extension | Tool square drive 1" -> Output 1" | Length 175.00 mm | Diameter 54.00 mm
9 1420 0150 | Extension | Tool square drive 1" -> Output 1" | Length 250.00 mm | Diameter 54.00 mm
9 1420 0160 | Extension | Tool square drive 1" -> Output 1" | Length 330.00 mm | Diameter 54.00 mm

Universal joint (table)
9 1422 0090 | Universal joint | Tool square drive 1" -> Output 1" | Length 100.00 mm | Diameter 54.00 mm

Service units (table)
9 2406 0260 | Portable service unit with pressure regulator 3/4"
9 2406 0650 | Portable service unit with protection housing and pressure regulator 3/4"

Hoses (table)
9 3610 0410 | Pneumatic pressure hose ID 13 mm, 2.5 m length, screw-on claw clamp
9 3610 0420 | Pneumatic pressure hose ID 16 mm, 2.5 m length, screw-on claw clamp
9 3610 0430 | Pneumatic pressure hose ID 19 mm, 2.5 m length, screw-on claw clamp

Miscellaneous Accessories (table)
9 9902 0120 | Multi oil for cleaning and protection
More accessories available on request.

Characteristics / Specifications

• Operating pressure: 6 bar
• Square drive: 1"
• Max. torque: 1,500 Nm
• Air consumption: 1.60 m³/min
• Screws up to: M36
• Distance center/outer edge: 57.00 mm
• Connection: R1/2" female
• Noise level LpA: 92.0 dB(A)
• Noise level LWA: 101.0 dB(A)
• Vibration level: 6.2 m/s²
• Weight: 13.5 kg
• ATEX: IM2ExhIMbT6
