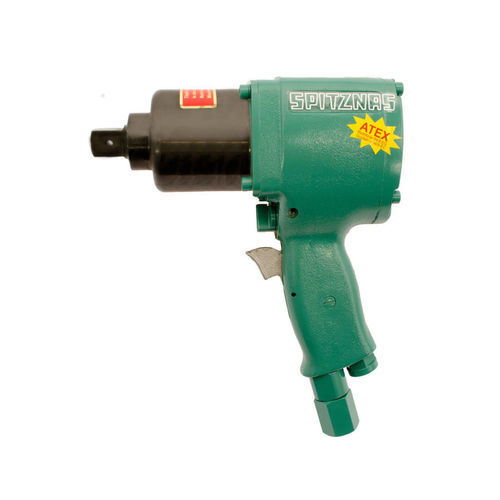

Pneumatic impact wrench 6 1316 0040

3/4"ATEXcompact

Product Overview
Powerful pneumatic impact wrench with slim design, suitable for use in ATEX areas for equipment group II (II2GExhIIBT6Gb). Compact dimensions and high torque output for industrial fastening applications.

Order information
Order Number: 6 1316 0050

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Square drive: 3/4"
• Torque max.: 880 Nm
• ATEX: II2GExhIIBT6Gb

Technical Data
ORDER NO.: 6 1316 0050
ATEX Specification: II2GExhIIBT6Gb
Energy source: Pneumatic
Operating pressure: 6 bar
Square drive: 3/4"
Screws up to: M30 mm
Air consumption: 1.40 m3/min
Max. torque: 880 Nm
Distance center to outer edge: 45.00 mm
Connection: R1/2" female
Noise level LpA: 96.0 dB(A)
Noise level LWA: 107.0 dB(A)
Vibration level: 4.5 m/s²
Weight: 5.6 kg
Fields of application / branch: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction

Accessories (selection)
Hexagon sockets, standard length

• 9 1408 0390 — Hexagon socket, standard length — 3/4" — Wrench width SW 17 mm — Length 50.00 mm — Diameter 31.00 mm
• 9 1408 0400 — Hexagon socket, standard length — 3/4" — Wrench width SW 19 mm — Length 50.00 mm — Diameter 33.50 mm
• 9 1408 0410 — Hexagon socket, standard length — 3/4" — Wrench width SW 22 mm — Length 50.00 mm — Diameter 37.00 mm
• 9 1408 0420 — Hexagon socket, standard length — 3/4" — Wrench width SW 24 mm — Length 50.00 mm — Diameter 40.00 mm
• 9 1408 0430 — Hexagon socket, standard length — 3/4" — Wrench width SW 27 mm — Length 53.00 mm — Diameter 43.50 mm
• 9 1408 0440 — Hexagon socket, standard length — 3/4" — Wrench width SW 30 mm — Length 53.00 mm — Diameter 47.00 mm
• 9 1408 0450 — Hexagon socket, standard length — 3/4" — Wrench width SW 32 mm — Length 57.00 mm — Diameter 50.00 mm
• 9 1408 0460 — Hexagon socket, standard length — 3/4" — Wrench width SW 36 mm — Length 56.00 mm — Diameter 52.00 mm
• 9 1408 0470 — Hexagon socket, standard length — 3/4" — Wrench width SW 41 mm — Length 58.00 mm — Diameter 61.50 mm
• 9 1408 0480 — Hexagon socket, standard length — 3/4" — Wrench width SW 46 mm — Length 64.00 mm — Diameter 63.00 mm

Hexagon sockets, extra long

• 9 1408 0510 — extra long — 3/4" — SW 22 mm — Length 95.00 mm — Diameter 38.00 mm
• 9 1408 0520 — extra long — 3/4" — SW 24 mm — Length 95.00 mm — Diameter 40.00 mm
• 9 1408 0530 — extra long — 3/4" — SW 27 mm — Length 95.00 mm — Diameter 43.00 mm
• 9 1408 0540 — extra long — 3/4" — SW 30 mm — Length 95.00 mm — Diameter 47.00 mm
• 9 1408 0550 — extra long — 3/4" — SW 32 mm — Length 95.00 mm — Diameter 49.00 mm
• 9 1408 0560 — extra long — 3/4" — SW 36 mm — Length 95.00 mm — Diameter 54.00 mm

Hexagon sockets for allen head screws

• 9 1424 0540 — 3/4" — Wrench drive SW 17 mm — Length 85.00 mm — Diameter 44.00 mm
• 9 1424 0550 — 3/4" — Wrench drive SW 19 mm — Length 85.00 mm — Diameter 44.00 mm
• 9 1424 0660 — 3/4" — Wrench drive SW 22 mm — Length 85.00 mm — Diameter 44.00 mm
• 9 1424 0670 — 3/4" — Wrench drive SW 24 mm — Length 85.00 mm — Diameter 44.00 mm

Extensions

• 9 1420 0100 — Extension — Tool square drive 3/4" — Output 3/4" — Length 175.00 mm — Diameter 44.00 mm
• 9 1420 0110 — Extension — Tool square drive 3/4" — Output 3/4" — Length 250.00 mm — Diameter 44.00 mm
• 9 1420 0120 — Extension — Tool square drive 3/4" — Output 3/4" — Length 330.00 mm — Diameter 44.00 mm

Universal joint

• 9 1422 0070 — Universal joint — Tool square drive 3/4" — Output 3/4" — Length 65.00 mm — Diameter 44.00 mm

Service units

• 9 2406 0260 — Portable service unit with pressure regulator 3/4"
• 9 2406 0650 — Portable service unit with protection housing and pressure regulator 3/4"

Hoses

• 9 3610 0410 — Pneumatic pressure hose ID 13 mm, 2.5 m length, screw-on claw clamp
• 9 3610 0420 — Pneumatic pressure hose ID 16 mm, 2.5 m length, screw-on claw clamp
• 9 3610 0430 — Pneumatic pressure hose ID 19 mm, 2.5 m length, screw-on claw clamp

Miscellaneous Accessories

• 9 9902 0120 — Multi oil for cleaning and protection
• More accessories on request (as noted on product page)

Technical specifications

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Square drive: 3/4"
• Maximum torque: 880 Nm
• Screws up to: M30 mm
• Air consumption: 1.40 m3/min
• Connection: R1/2" female
• Noise level LpA: 96.0 dB(A)
• Noise level LWA: 107.0 dB(A)
• Vibration level: 4.5 m/s²
• Weight: 5.6 kg
• ATEX specification: II2GExhIIBT6Gb
