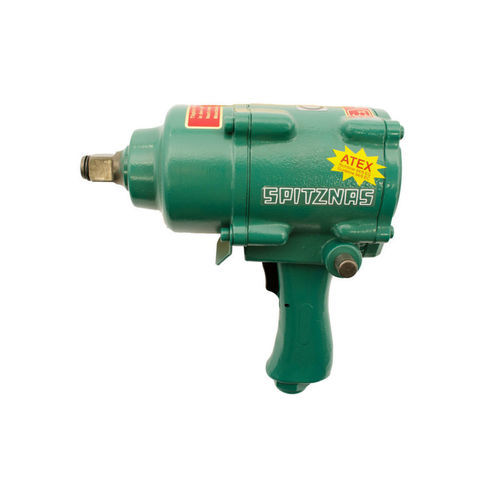

Pneumatic impact wrench 613130010

3/4"ATEXfor heavy-duty applications

Overview
This pneumatic impact wrench (ORDER NO. 6 1313 0010) is certified for use in ATEX gas zones (II2GExhIIBT6Gb) and is intended for heavy industrial applications such as energy and pipeline construction, metal and steel construction, and plant and mechanical engineering.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Square drive: 3/4"
• Max. torque: 600 Nm
• ATEX: II2GExhIIBT6Gb

Technical data
ORDER NO.: 6 1313 0010
ATEX specification: II2GExhIIBT6Gb
Energy source: Pneumatic
Operating pressure: 6 bar
Square drive: 3/4"
Screws up to: M27 mm
Air consumption: 1.20 m³/min
Max. torque: 600 Nm
Distance center to outer edge: 47.50 mm
Connection: R1/2" female
Noise level LpA: 102.0 dB(A)
Noise level LWA: 114.0 dB(A)
Vibration level: 4.8 m/s²
Weight: 6.2 kg
Fields of application / branch: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction

Accessories
Hexagon sockets, standard length

• 9 1408 0390; Hexagon socket, standard length; 3/4"; 17; 50.00; 31.00
• 9 1408 0400; Hexagon socket, standard length; 3/4"; 19; 50.00; 33.50
• 9 1408 0410; Hexagon socket, standard length; 3/4"; 22; 50.00; 37.00
• 9 1408 0420; Hexagon socket, standard length; 3/4"; 24; 50.00; 40.00
• 9 1408 0430; Hexagon socket, standard length; 3/4"; 27; 53.00; 43.50
• 9 1408 0440; Hexagon socket, standard length; 3/4"; 30; 53.00; 47.00
• 9 1408 0450; Hexagon socket, standard length; 3/4"; 32; 57.00; 50.00
• 9 1408 0460; Hexagon socket, standard length; 3/4"; 36; 56.00; 52.00
• 9 1408 0470; Hexagon socket, standard length; 3/4"; 41; 58.00; 61.50
• 9 1408 0480; Hexagon socket, standard length; 3/4"; 46; 64.00; 63.00

Hexagon sockets, extra long

• 9 1408 0510; Hexagon socket, extra long; 3/4"; 22; 95.00; 38.00
• 9 1408 0520; Hexagon socket, extra long; 3/4"; 24; 95.00; 40.00
• 9 1408 0530; Hexagon socket, extra long; 3/4"; 27; 95.00; 43.00
• 9 1408 0540; Hexagon socket, extra long; 3/4"; 30; 95.00; 47.00
• 9 1408 0550; Hexagon socket, extra long; 3/4"; 32; 95.00; 49.00
• 9 1408 0560; Hexagon socket, extra long; 3/4"; 36; 95.00; 54.00

Hexagon sockets for allen head screws

• 9 1424 0540; Hexagon socket for allen head screws; 3/4"; 17; 85.00; 44.00
• 9 1424 0550; Hexagon socket for allen head screws; 3/4"; 19; 85.00; 44.00
• 9 1424 0660; Hexagon socket for allen head screws; 3/4"; 22; 85.00; 44.00
• 9 1424 0670; Hexagon socket for allen head screws; 3/4"; 24; 85.00; 44.00

Extensions

• 9 1420 0100; Extension; 3/4"; 3/4"; 175.00; 44.00
• 9 1420 0110; Extension; 3/4"; 3/4"; 250.00; 44.00
• 9 1420 0120; Extension; 3/4"; 3/4"; 330.00; 44.00

Universal joint

• 9 1422 0070; Universal joint; 3/4"; 3/4"; 65.00; 44.00

Service units

• 9 2406 0260; Portable service unit with pressure regulator 3/4"
• 9 2406 0650; Portable service unit with protection housing and pressure regulator 3/4"

Hoses

• 9 3610 0410; Pneumatic pressure hose ID 13 mm, 2.5 m length, screw-on claw clamp
• 9 3610 0420; Pneumatic pressure hose ID 16 mm, 2.5 m length, screw-on claw clamp
• 9 3610 0430; Pneumatic pressure hose ID 19 mm, 2.5 m length, screw-on claw clamp

Miscellaneous Accessories

• 9 9902 0120; Multi oil for cleaning and protection

More accessories on request.

Characteristics / Technical specifications

• Order number: 6 1313 0010
• ATEX specification: II2GExhIIBT6Gb
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Square drive: 3/4"
• Max. torque: 600 Nm
• Air consumption: 1.20 m³/min
• Screws up to: M27 mm
• Distance center to outer edge: 47.50 mm
• Connection: R1/2" female
• Noise level LpA: 102.0 dB(A); LWA: 114.0 dB(A)
• Vibration level: 4.8 m/s²
• Weight: 6.2 kg
