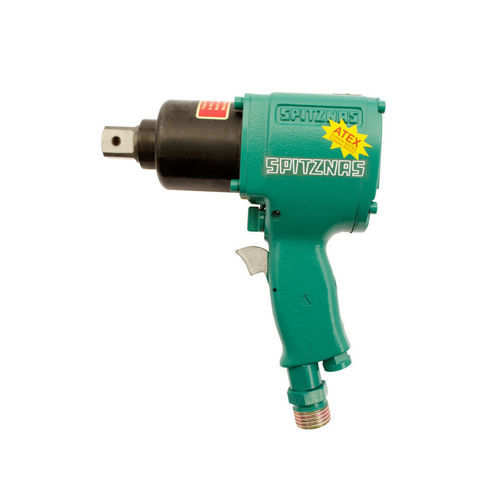

Pneumatic impact wrench 6 1316 0010

1"ATEXfor heavy-duty applications

Product description
Particularly developed pneumatic impact wrench for underwater application and heavy industry tasks. Designed for operation at 6 bar and equipped with a 1" square drive and ATEX certification IM2ExhIMbT6.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Square drive: 1"
• Max. torque: 880 Nm
• Suitable for underground mining and underwater use
• ATEX: IM2ExhIMbT6

Technical Data
ORDER NO.: 6 1316 0010
ATEX Specification: IM2ExhIMbT6
Energy source: Pneumatic
Operating pressure: 6 bar
Square drive: 1"
Screws up to: M30 mm
Air consumption: 1.40 m³/min
Max. torque: 880 Nm
Distance centre to outer edge: 45.00 mm
Connection: R1/2" female
Noise level LpA: 96.0 dB(A)
Noise level LWA: 107.0 dB(A)
Vibration level: 4.5 m/s²
Weight: 6.5 kg
Fields of application / branch: Energy and pipeline construction; Metal industry and steel construction; Mining; Plant and mechanical construction

Accessories
Hexagon sockets, standard length

• 9 1408 0580 | Hexagon socket, standard length | 1" | SW 24 | Length 55.00 mm | Ø 42.50 mm
• 9 1408 0590 | Hexagon socket, standard length | 1" | SW 27 | Length 55.00 mm | Ø 46.00 mm
• 9 1408 0600 | Hexagon socket, standard length | 1" | SW 30 | Length 57.00 mm | Ø 50.00 mm
• 9 1408 0610 | Hexagon socket, standard length | 1" | SW 32 | Length 57.00 mm | Ø 52.00 mm
• 9 1408 0620 | Hexagon socket, standard length | 1" | SW 36 | Length 60.00 mm | Ø 55.00 mm
• 9 1408 0630 | Hexagon socket, standard length | 1" | SW 41 | Length 64.00 mm | Ø 64.00 mm
• 9 1408 0640 | Hexagon socket, standard length | 1" | SW 46 | Length 69.00 mm | Ø 70.00 mm
• 9 1408 0650 | Hexagon socket, standard length | 1" | SW 50 | Length 72.00 mm | Ø 73.00 mm
• 9 1408 0660 | Hexagon socket, standard length | 1" | SW 55 | Length 76.00 mm | Ø 82.00 mm
• 9 1408 0670 | Hexagon socket, standard length | 1" | SW 60 | Length 82.00 mm | Ø 86.00 mm
• 9 1408 0680 | Hexagon socket, standard length | 1" | SW 65 | Length 85.00 mm | Ø 92.00 mm

Hexagon sockets, extra long

• 9 1408 0690 | Hexagon socket, extra long | 1" | SW 24 | Length 100.00 mm | Ø 42.00 mm
• 9 1408 0700 | Hexagon socket, extra long | 1" | SW 27 | Length 100.00 mm | Ø 46.00 mm
• 9 1408 0710 | Hexagon socket, extra long | 1" | SW 30 | Length 100.00 mm | Ø 50.00 mm
• 9 1408 0720 | Hexagon socket, extra long | 1" | SW 32 | Length 100.00 mm | Ø 51.00 mm
• 9 1408 0730 | Hexagon socket, extra long | 1" | SW 36 | Length 100.00 mm | Ø 54.00 mm
• 9 1408 0740 | Hexagon socket, extra long | 1" | SW 41 | Length 100.00 mm | Ø 63.00 mm
• 9 1408 0750 | Hexagon socket, extra long | 1" | SW 46 | Length 100.00 mm | Ø 70.00 mm
• 9 1408 0760 | Hexagon socket, extra long | 1" | SW 50 | Length 110.00 mm | Ø 75.00 mm
• 9 1408 0770 | Hexagon socket, extra long | 1" | SW 55 | Length 112.00 mm | Ø 80.00 mm
• 9 1408 0780 | Hexagon socket, extra long | 1" | SW 60 | Length 114.00 mm | Ø 85.00 mm

Hexagon sockets for allen head screws

• 9 1424 0440 | Hexagon socket for allen head screws | 1" | SW 17 | Length 75.00 mm | Ø 54.00 mm
• 9 1424 0450 | Hexagon socket for allen head screws | 1" | SW 19 | Length 75.00 mm | Ø 54.00 mm
• 9 1424 0460 | Hexagon socket for allen head screws | 1" | SW 22 | Length 75.00 mm | Ø 54.00 mm
• 9 1424 0470 | Hexagon socket for allen head screws | 1" | SW 24 | Length 75.00 mm | Ø 54.00 mm

Extensions

• 9 1420 0140 | Extension | Tool square drive 1" | Output square drive 1" | Length 175.00 mm | Ø 54.00 mm
• 9 1420 0150 | Extension | Tool square drive 1" | Output square drive 1" | Length 250.00 mm | Ø 54.00 mm
• 9 1420 0160 | Extension | Tool square drive 1" | Output square drive 1" | Length 330.00 mm | Ø 54.00 mm

Universal joint

• 9 1422 0090 | Universal joint | Tool square drive 1" | Output square drive 1" | Length 100.00 mm | Ø 54.00 mm

Service units

• 9 2406 0260 | Portable service unit with pressure regulator 3/4"
• 9 2406 0650 | Portable service unit with protection housing and pressure regulator 3/4"

Hoses

• 9 3610 0410 | Pneumatic pressure hose ID 13 mm, 2.5 m length, screw-on claw clamp
• 9 3610 0420 | Pneumatic pressure hose ID 16 mm, 2.5 m length, screw-on claw clamp
• 9 3610 0430 | Pneumatic pressure hose ID 19 mm, 2.5 m length, screw-on claw clamp

Miscellaneous Accessories

• 9 9902 0120 | Multi oil for cleaning and protection

More accessories on request.
