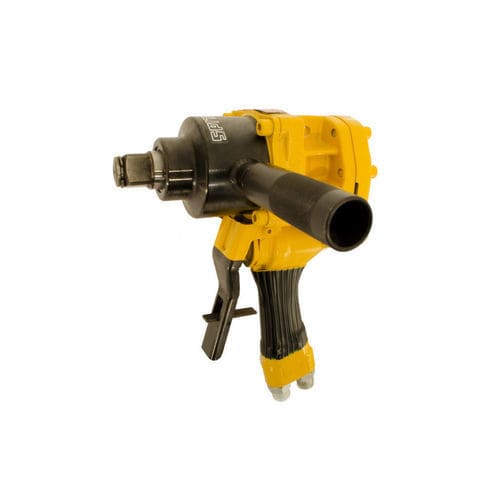

Hydraulic impact wrench 6 1514 0010

1"ATEXfor heavy-duty applications

Product overview
Universally usable hydraulic impact wrench for open-circuit systems, designed for heavy bolting tasks and also suitable for underwater operation. Compact and serviceable design for use in energy, pipeline and plant construction.

Main attributes

• Energy source: Hydraulic
• Operating pressure: 70-140 bar
• Square drive: 1"
• Max. torque: 1,700 Nm
• Adjustable torque: 350–1,700 Nm
• Volume flow: 20–40 l/min
• Underwater operation
• ATEX: II2GExhIIBT5Gb
• Weight: 7.3 kg

Technical Data

• ORDER NO.: 6 1514 0010
• ATEX Specification: II2GExhIIBT5Gb
• Energy source: Hydraulic
• Operating pressure: 70-140 bar
• Square drive: 1"
• Screws up to: M30 mm
• Volume flow: 20-40 l/min
• Max. torque: 1,700 Nm
• Adjustable torque: 350-1,700 Nm
• Distance centre to outer edge: 45.00 mm
• Impacts: 1,200 rpm
• Width without 2nd handle: 100.00 mm
• Connection: M18x1.5 mm
• Hydraulic hose connection: Flat-Star A250-OM/OF-1/2”BSP
• Hydraulic medium: Hydraulic oil
• Hydraulic circuit: open circuit
• Oil filtration: ISO-level of purity 20/18/13
• Temperature of oil: -34 up to +82 °C
• Viscosity of oil: >13 centistokes
• Noise level LpA: 85.3 dB(A)
• Noise level LWA: 96,3 dB(A)
• Vibration level: 3,8 m/s²
• Weight: 7.3 kg

Applications

• Energy and pipeline construction
• Metal industry and steel construction
• Plant and mechanical construction
• Underwater work
