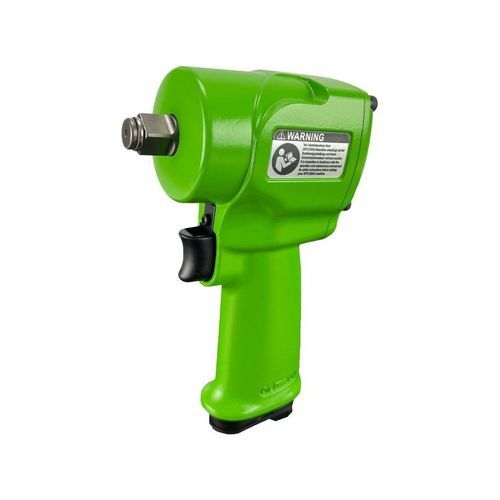

Pneumatic impact wrench 6 1037 0010

1/2"ATEXlightweight

Product description
This compact industrial pneumatic impact wrench provides easy handling and low weight, making it suitable for assembly and maintenance in confined spaces. Certified for use in ATEX-protected areas of equipment group II (gases).

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Square drive: 1/2"
• Torque max.: 542 Nm
• ATEX: II2GExhIIBT6Gb
• Screws up to: M20
• Air consumption: 0.14 m³/min
• Max. torque (hard screwing case): 949 Nm
• Distance centre to outer edge: 30.0 mm
• Connection: R1/4" female
• Noise level LpA: 94.3 dB(A)
• Noise level LWA: 105.3 dB(A)
• Vibration level: 7.2 m/s²
• Weight: 1.37 kg

Accessories (selection)
Hexagon sockets, standard length

• 9 1408 1290 — Hexagon socket, standard length — 1/2" — SW 8 — L 40.00 mm — Ø 15.00 mm
• 9 1408 1310 — Hexagon socket, standard length — 1/2" — SW 10 — L 40.00 mm — Ø 17.00 mm
• 9 1408 1320 — Hexagon socket, standard length — 1/2" — SW 13 — L 40.00 mm — Ø 21.00 mm
• 9 1408 0110 — Hexagon socket, standard length — 1/2" — SW 14 — L 40.00 mm — Ø 23.00 mm
• 9 1408 0120 — Hexagon socket, standard length — 1/2" — SW 17 — L 40.00 mm — Ø 26.00 mm

Hexagon sockets, extra long

• 9 1408 0190 — Hexagon socket, extra long — 1/2" — SW 14 — L 80.00 mm — Ø 21.00 mm
• 9 1408 0200 — Hexagon socket, extra long — 1/2" — SW 17 — L 80.00 mm — Ø 24.00 mm
• 9 1408 0210 — Hexagon socket, extra long — 1/2" — SW 19 — L 80.00 mm — Ø 26.00 mm

Hexagon sockets for allen head screws

• 9 1424 0570 — Hexagon socket for allen head screws — 1/2" — SW 5 — L 55.00 mm — Ø 30.00 mm
• 9 1424 0580 — Hexagon socket for allen head screws — 1/2" — SW 6 — L 55.00 mm — Ø 30.00 mm
• 9 1424 0590 — Hexagon socket for allen head screws — 1/2" — SW 8 — L 55.00 mm — Ø 30.00 mm

Extensions

• 9 1420 0050 — Extension — tool square drive 1/2" — output square drive 1/2" — L 125.00 mm — Ø 25.00 mm
• 9 1420 0060 — Extension — tool square drive 1/2" — output square drive 1/2" — L 250.00 mm — Ø 25.00 mm

Universal joint

• 9 1422 0040 — Universal joint — tool square drive 1/2" — output square drive 1/2" — L 75.00 mm — Ø 30.00 mm

Service units

• 9 2406 0260 — Portable service unit with pressure regulator 3/4"
• 9 2406 0650 — Portable service unit with protection housing and pressure regulator 3/4"

Hoses

• 9 3610 0410 — Pneumatic pressure hose ID 13 mm, 2.5 m, screw-on claw clamp
• 9 3610 0420 — Pneumatic pressure hose ID 16 mm, 2.5 m, screw-on claw clamp
• 9 3610 0430 — Pneumatic pressure hose ID 19 mm, 2.5 m, screw-on claw clamp

Miscellaneous Accessories

• 9 9902 0120 — Multi oil for cleaning and protection

Characteristics / Technical specifications

• ORDER NO.: 6 1037 0010
• ATEX Specification: II2GExhIIBT6Gb
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Square drive: 1/2"
• Screws up to: M20 mm
• Air consumption: 0.14 m³/min
• Max. torque: 542 Nm
• Max torque (hard screwing case): 949 Nm
• Distance centre to outer edge: 30.0 mm
• Connection: R1/4" female
• Noise level LpA: 94.3 dB(A)
• Noise level LWA: 105.3 dB(A)
• Vibration level: 7.2 m/s²
• Weight: 1.37 kg
• Fields of application / branch: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction
