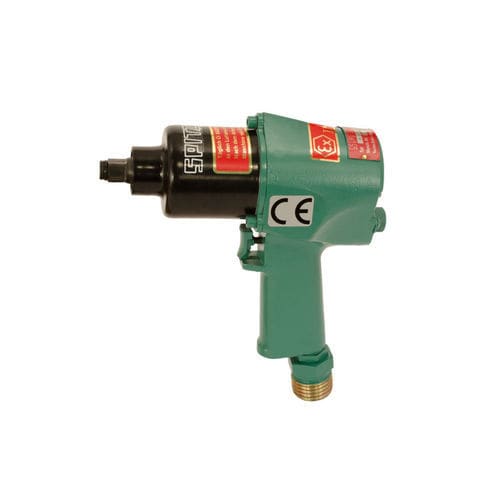

Pneumatic impact wrench 6 1035 0010

1/2"ATEXfor heavy-duty applications

Description
The 6 1035 0010 pneumatic impact wrench is a lightweight industrial tool designed for efficient fastening and loosening of high-torque bolts. It is certified for use in ATEX area (equipment group I) and is suitable for underground mining and heavy industrial applications.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Square drive: 1/2"
• Max. torque: 610 Nm
• ATEX: IM2ExhIMbT6
• Weight: 2.5 kg

Technical Data (table)

• ORDER NO.: 6 1035 0010
• ATEX Specification: IM2ExhIMbT6
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Square drive: 1/2"
• Screws up to: M20 mm
• Air consumption: 0.32 m³/min
• Max. torque: 610 Nm
• Distance center to outer edge: 47.5 mm
• Connection: Rd32x1/8" male
• Noise level LpA: 90.0 dB(A)
• Noise level LWA: 101.0 dB(A)
• Vibration level: 2.6 m/s²
• Weight: 2.5 kg
• Fields of application / branch: Energy and pipeline construction; Metal industry and steel construction; Mining; Plant and mechanical construction

Accessories (tables)
Hexagon sockets, standard length

• 9 1408 1290 | Hexagon socket, standard length | 1/2" | SW 8 mm | Length 40.00 mm | Diameter 15.00 mm
• 9 1408 1310 | Hexagon socket, standard length | 1/2" | SW 10 mm | Length 40.00 mm | Diameter 17.00 mm
• 9 1408 1320 | Hexagon socket, standard length | 1/2" | SW 13 mm | Length 40.00 mm | Diameter 21.00 mm
• 9 1408 0110 | Hexagon socket, standard length | 1/2" | SW 14 mm | Length 40.00 mm | Diameter 23.00 mm
• 9 1408 0120 | Hexagon socket, standard length | 1/2" | SW 17 mm | Length 40.00 mm | Diameter 26.00 mm
• 9 1408 0130 | Hexagon socket, standard length | 1/2" | SW 19 mm | Length 40.00 mm | Diameter 28.50 mm
• 9 1408 0140 | Hexagon socket, standard length | 1/2" | SW 22 mm | Length 40.00 mm | Diameter 32.50 mm
• 9 1408 0150 | Hexagon socket, standard length | 1/2" | SW 24 mm | Length 45.00 mm | Diameter 35.00 mm
• 9 1408 0160 | Hexagon socket, standard length | 1/2" | SW 27 mm | Length 50.00 mm | Diameter 38.00 mm
• 9 1408 0170 | Hexagon socket, standard length | 1/2" | SW 30 mm | Length 50.00 mm | Diameter 42.00 mm

Hexagon sockets, extra long

• 9 1408 0190 | Hexagon socket, extra long | 1/2" | SW 14 mm | Length 80.00 mm | Diameter 21.00 mm
• 9 1408 0200 | Hexagon socket, extra long | 1/2" | SW 17 mm | Length 80.00 mm | Diameter 24.00 mm
• 9 1408 0210 | Hexagon socket, extra long | 1/2" | SW 19 mm | Length 80.00 mm | Diameter 26.00 mm
• 9 1408 0220 | Hexagon socket, extra long | 1/2" | SW 22 mm | Length 80.00 mm | Diameter 30.00 mm
• 9 1408 0230 | Hexagon socket, extra long | 1/2" | SW 24 mm | Length 80.00 mm | Diameter 32.00 mm
• 9 1408 0240 | Hexagon socket, extra long | 1/2" | SW 27 mm | Length 80.00 mm | Diameter 36.50 mm

Hexagon sockets for allen head screws

• 9 1424 0570 | Hexagon socket for allen head screws | 1/2" | SW 5 mm | Length 55.00 mm | Diameter 30.00 mm
• 9 1424 0580 | Hexagon socket for allen head screws | 1/2" | SW 6 mm | Length 55.00 mm | Diameter 30.00 mm
• 9 1424 0590 | Hexagon socket for allen head screws | 1/2" | SW 8 mm | Length 55.00 mm | Diameter 30.00 mm
• 9 1424 0600 | Hexagon socket for allen head screws | 1/2" | SW 10 mm | Length 55.00 mm | Diameter 30.00 mm
• 9 1424 0610 | Hexagon socket for allen head screws | 1/2" | SW 12 mm | Length 55.00 mm | Diameter 30.00 mm

Extensions

• 9 1420 0050 | Extension | Tool square drive 1/2" | Output square drive 1/2" | Length 125.00 mm | Diameter 25.00 mm
• 9 1420 0060 | Extension | Tool square drive 1/2" | Output square drive 1/2" | Length 250.00 mm | Diameter 25.00 mm

Universal joint

• 9 1422 0040 | Universal joint | Tool square drive 1/2" | Output square drive 1/2" | Length 75.00 mm | Diameter 30.00 mm

Service units

• 9 2406 0260 | Portable service unit with pressure regulator 3/4"
• 9 2406 0650 | Portable service unit with protection housing and pressure regulator 3/4"

Hoses

• 9 3610 0410 | Pneumatic pressure hose ID 13 mm, 2.5 m length, screw-on claw clamp
• 9 3610 0420 | Pneumatic pressure hose ID 16 mm, 2.5 m length, screw-on claw clamp
• 9 3610 0430 | Pneumatic pressure hose ID 19 mm, 2.5 m length, screw-on claw clamp

Miscellaneous Accessories

• 9 9902 0120 | Multi oil for cleaning and protection

More accessories on request.
