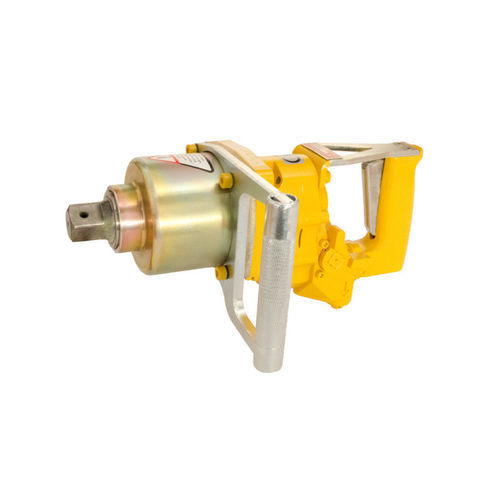

Hydraulic impact wrench 6 1519 0010

1"ATEXsquare drive

Product Overview
Universally usable hydraulic impact wrench for open circuit. Suitable for underwater and underground operations. Order number: 6 1519 0010. ATEX certified: IM2ExhIMbT5.

Main Attributes

• Energy source: Hydraulic (open circuit)
• Operating pressure: 70–140 bar
• Square drive: 1"
• Max torque: 1,700 Nm (adjustable 350–1,700 Nm)
• Volume flow: 20–40 l/min
• Impacts: 1,200 rpm
• Operating temperature (oil): -34 to +82 °C
• Weight: 9.0 kg

Technical Data

• Order no.: 6 1519 0010
• ATEX: IM2ExhIMbT5
• Energy source: Hydraulic
• Operating pressure: 70–140 bar
• Square drive: 1"
• Screws up to: M30
• Volume flow: 20–40 l/min
• Max torque: 1,700 Nm
• Adjustable torque: 350–1,700 Nm
• Center to outer edge distance: 45.00 mm
• Impacts: 1,200 rpm
• Width without 2nd handle: 100.00 mm
• Hydraulic hose connection: STECKO-10
• Hydraulic medium: Hydraulic oil
• Hydraulic circuit: Open circuit
• Oil filtration: ISO purity level 20/18/13
• Oil temperature: -34 to +82 °C
• Oil viscosity: >13 cSt
• Noise level (LpA): 85.3 dB(A)
• Noise level (LWA): 96.3 dB(A)
• Vibration level: 3.8 m/s²
• Weight: 9.0 kg

Fields of Application

• Energy and pipeline construction
• Metal and steel construction
• Mining and underground works
• Plant and mechanical engineering
• Underwater operations

Accessories (selection)

• Hexagon sockets, standard length (multiple sizes, square drive 1")
• Hexagon sockets, extra long (multiple sizes, square drive 1")
• Hexagon sockets for Allen head screws (multiple sizes, square drive 1")
• Extensions (175 mm / 250 mm / 330 mm, square drive 1")
• Universal joint (square drive 1")
• Miscellaneous: multi oil for cleaning and protection; other accessories on request
