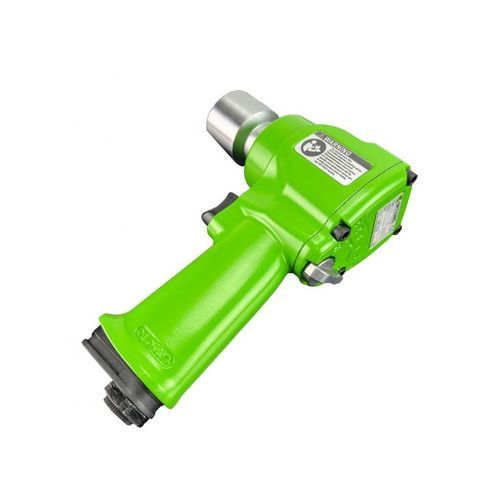

Pneumatic impact wrench 6 1037 0010

1/2"ATEXlightweight

Product description
This compact industrial pneumatic impact wrench offers easy handling and low weight, making it ideal for use in confined spaces. Designed for professional applications and suitable for use in ATEX-protected areas of equipment group II.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Square drive: 1/2"
• Max. torque: 542 Nm
• ATEX: II2GExhIIBT6Gb

Technical Data (table)
ORDER NO.: 6 1037 0010
ATEX Specification: II2GExhIIBT6Gb
Energy source: Pneumatic
Operating pressure: 6 bar
Square drive: 1/2"
Screws up to: M20 mm
Air consumption: 0.14 m³/min
Max. torque: 542 Nm
Max torque (hard screwing case): 949 Nm
Distance center to outer edge: 30.0 mm
Connection: R1/4" female
Noise level LpA: 94.3 dB(A)
Noise level LWA: 105.3 dB(A)
Vibration level: 7.2 m/s²
Weight: 1.37 kg
Fields of application / branch: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction

Accessories (selection)
Hexagon sockets, standard length
ORDER NO. | Description | Square drive [inch] | Wrench width SW [mm] | Length [mm] | Diameter [mm]
9 1408 1290 | Hexagon socket, standard length | 1/2" | 8 | 40.00 | 15.00
9 1408 1310 | Hexagon socket, standard length | 1/2" | 10 | 40.00 | 17.00
9 1408 1320 | Hexagon socket, standard length | 1/2" | 13 | 40.00 | 21.00
9 1408 0110 | Hexagon socket, standard length | 1/2" | 14 | 40.00 | 23.00
9 1408 0120 | Hexagon socket, standard length | 1/2" | 17 | 40.00 | 26.00
9 1408 0130 | Hexagon socket, standard length | 1/2" | 19 | 40.00 | 28.50
9 1408 0140 | Hexagon socket, standard length | 1/2" | 22 | 40.00 | 32.50
9 1408 0150 | Hexagon socket, standard length | 1/2" | 24 | 45.00 | 35.00
9 1408 0160 | Hexagon socket, standard length | 1/2" | 27 | 50.00 | 38.00
9 1408 0170 | Hexagon socket, standard length | 1/2" | 30 | 50.00 | 42.00

Hexagon sockets, extra long
9 1408 0190 | Hexagon socket, extra long | 1/2" | 14 | 80.00 | 21.00
9 1408 0200 | Hexagon socket, extra long | 1/2" | 17 | 80.00 | 24.00
9 1408 0210 | Hexagon socket, extra long | 1/2" | 19 | 80.00 | 26.00
9 1408 0220 | Hexagon socket, extra long | 1/2" | 22 | 80.00 | 30.00
9 1408 0230 | Hexagon socket, extra long | 1/2" | 24 | 80.00 | 32.00
9 1408 0240 | Hexagon socket, extra long | 1/2" | 27 | 80.00 | 36.50

Hexagon sockets for allen head screws
9 1424 0570 | Hexagon socket for allen head screws | 1/2" | 5 | 55.00 | 30.00
9 1424 0580 | Hexagon socket for allen head screws | 1/2" | 6 | 55.00 | 30.00
9 1424 0590 | Hexagon socket for allen head screws | 1/2" | 8 | 55.00 | 30.00
9 1424 0600 | Hexagon socket for allen head screws | 1/2" | 10 | 55.00 | 30.00
9 1424 0610 | Hexagon socket for allen head screws | 1/2" | 12 | 55.00 | 30.00

Extensions
9 1420 0050 | Extension | Tool square drive 1/2" | Output square drive 1/2" | Length 125.00 mm | Diameter 25.00 mm
9 1420 0060 | Extension | Tool square drive 1/2" | Output square drive 1/2" | Length 250.00 mm | Diameter 25.00 mm

Universal joint
9 1422 0040 | Universal joint | Tool square drive 1/2" | Output square drive 1/2" | Length 75.00 mm | Diameter 30.00 mm

Service units
9 2406 0260 | Portable service unit with pressure regulator 3/4"
9 2406 0650 | Portable service unit with protection housing and pressure regulator 3/4"

Hoses
9 3610 0410 | Pneumatic pressure hose ID 13 mm, 2.5 m length, screw-on claw clamp
9 3610 0420 | Pneumatic pressure hose ID 16 mm, 2.5 m length, screw-on claw clamp
9 3610 0430 | Pneumatic pressure hose ID 19 mm, 2.5 m length, screw-on claw clamp

Miscellaneous Accessories
9 9902 0120 | Multi oil for cleaning and protection
More accessories on request.

Caractéristiques / spécifications techniques

• Order number: 6 1037 0010
• ATEX: II2GExhIIBT6Gb
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Square drive: 1/2"
• Suitable for screws up to M20
• Air consumption: 0.14 m³/min
• Max. torque: 542 Nm (949 Nm hard screwing case)
• Connection: R1/4" female
• Noise LpA: 94.3 dB(A); LWA: 105.3 dB(A)
• Vibration level: 7.2 m/s²
• Weight: 1.37 kg
