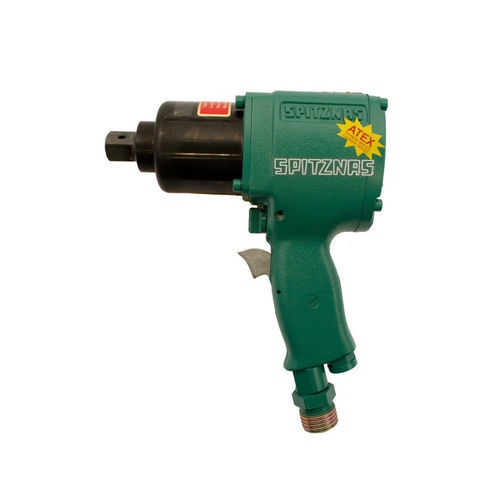

Pneumatic impact wrench 6 1316 0020

3/4"ATEXfor heavy-duty applications

Product description
Powerful pneumatic impact wrench with a slim design, suitable for use in ATEX area (IM2ExhIMbT6). Designed for heavy-duty applications including underground mining and pipeline installation.

Main attributes

• Order Number: 6 1316 0020
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Square drive: 3/4"
• Max. torque: 880 Nm
• Screws up to: M30
• Air consumption: 1.40 m³/min
• Weight: 6.4 kg
• ATEX: IM2ExhIMbT6

Technical data

• Distance center to outer edge: 45.00 mm
• Connection: R1/2" female
• Noise level LpA: 96.0 dB(A)
• Noise level LWA: 107.0 dB(A)
• Vibration level: 4.5 m/s²
• Air consumption: 1.40 m³/min
• Fields of application: Energy and pipeline construction; Metal industry and steel construction; Mining; Plant and mechanical construction

Accessories
Hexagon sockets, standard length

• 9 1408 0390 — 3/4", SW 17, L 50 mm
• 9 1408 0400 — 3/4", SW 19, L 50 mm
• 9 1408 0440 — 3/4", SW 30, L 53 mm
• 9 1408 0480 — 3/4", SW 46, L 64 mm

Hexagon sockets, extra long

• 9 1408 0510 — 3/4", SW 22, L 95 mm
• 9 1408 0560 — 3/4", SW 36, L 95 mm

Hexagon sockets for allen head screws

• 9 1424 0540 — 3/4", SW 17, L 85 mm
• 9 1424 0670 — 3/4", SW 24, L 85 mm

Extensions & universal joint

• Extensions: 9 1420 0100 (175 mm), 9 1420 0120 (330 mm)
• Universal joint: 9 1422 0070 (65 mm)

Service units & hoses

• Portable service unit with pressure regulator: 9 2406 0260
• Portable service unit with protection housing and regulator: 9 2406 0650
• Hoses: 9 3610 0410 (ID 13 mm), 9 3610 0420 (ID 16 mm), 9 3610 0430 (ID 19 mm)

Miscellaneous

• Multi oil for cleaning and protection: 9 9902 0120
• More accessories available on request
