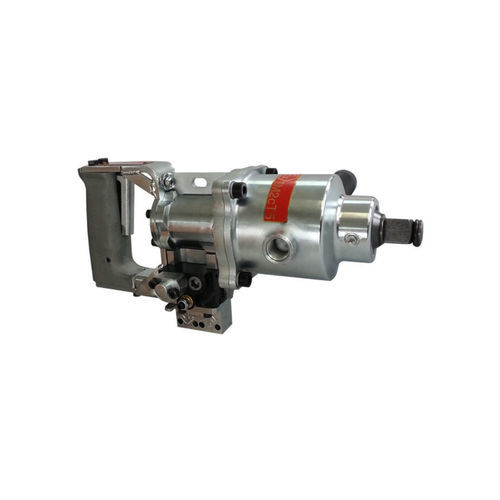

Hydraulic impact wrench 6 1516 0010

3/4"ATEXfor heavy-duty applications

Product overview
Universally usable hydraulic impact wrench for closed circuit which can also be driven with HFA emulsion. Operating pressure: 260 bar with hydraulic oil, 300 bar with HFA emulsion. Designed for heavy industrial applications including underwater and underground use. ATEX certified: IM2ExhIMbT5.

Main attributes

• Energy source: Hydraulic / HFA emulsion (min. 0.3%)
• Operating pressure: 180-260 bar (300 bar with HFA)
• Square drive: 3/4 inch
• Maximum torque: 1700 Nm
• Underwater operation capability
• Suitable for underground mining
• ATEX: IM2ExhIMbT5

Technical Data (table)
Order no.: 6 1516 0010
ATEX specification: IM2ExhIMbT5
Energy source: Hydraulic / HFA emulsion (min. 0.3%)
Operating pressure: 180-260 bar (300 bar with HFA)
Square drive: 3/4 inch
Screws up to: M30
Volume flow: 9.5 l/min
Max. torque: 1700 Nm
Adjustable torque: 350-1700 Nm
Distance centre to outer edge: 52.50 mm
Impacts: 1,800 rpm
Width without 2nd handle: 104.00 mm
Hydraulic hose connection: STECKO-10
Hydraulic medium: Hydraulic oil
Hydraulic circuit: closed circuit
Oil filtration: ISO purity level 20/18/13
Oil temperature: -34 to +82 °C
Required oil viscosity: >13 cSt
Noise level LpA: 94.5 dB(A)
Noise level LWA: 103.5 dB(A)
Vibration level: 1.1 m/s²
Weight: 7.4 kg
Fields of application: energy and pipeline construction; metal industry and steel construction; mining; plant and mechanical construction; underwater work

Accessories (examples)
Hexagon sockets, standard length (order examples): 9 1408 0390; 9 1408 0400; 9 1408 0410; 9 1408 0420; 9 1408 0430; 9 1408 0440; 9 1408 0450; 9 1408 0460; 9 1408 0470; 9 1408 0480
Hexagon sockets, extra long (order examples): 9 1408 0510; 9 1408 0520; 9 1408 0530; 9 1408 0540; 9 1408 0550; 9 1408 0560
Hexagon sockets for Allen head screws (order examples): 9 1424 0540; 9 1424 0550; 9 1424 0660; 9 1424 0670
Extensions (order examples): 9 1420 0100; 9 1420 0110; 9 1420 0120
Universal joint (order example): 9 1422 0070
Miscellaneous accessory (order example): 9 9902 0120 - Multi oil for cleaning and protection

Technical specifications

• Order number: 6 1516 0010
• ATEX: IM2ExhIMbT5
• Energy source: Hydraulic / HFA emulsion (min. 0.3%)
• Operating pressure: 180-260 bar (300 bar with HFA)
• Square drive: 3/4 inch
• Maximum torque: 1700 Nm
• Adjustable torque range: 350 - 1700 Nm
• Volume flow: 9.5 l/min
• Screws up to: M30
• Hydraulic hose connection: STECKO-10
• Hydraulic circuit: closed circuit
• Oil filtration: ISO 20/18/13
• Oil temperature range: -34 °C to +82 °C
• Required oil viscosity: >13 cSt
• Noise levels: LpA 94.5 dB(A), LWA 103.5 dB(A)
• Vibration level: 1.1 m/s²
• Weight: 7.4 kg
• Fields of application: energy and pipeline construction; metal and steel construction; mining; plant & mechanical construction; underwater work
