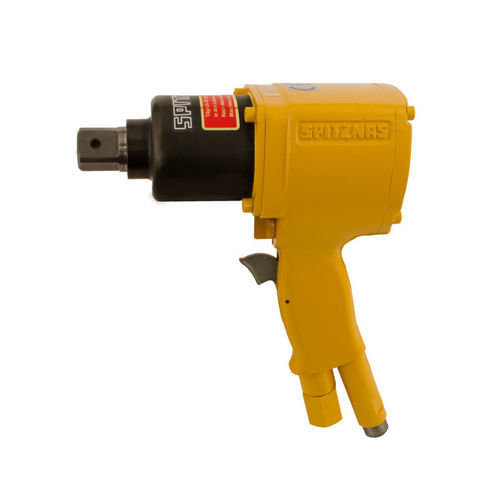

Pneumatic impact wrench 6 1316 0070

3/4"ATEXfor heavy-duty applications

Product overview
Specially designed pneumatic impact wrench for underwater operation. ATEX certified (II2GExhIIBT6Gb) for use in potentially explosive atmospheres. Suitable for heavy-duty fastening tasks in energy, pipeline, metal and plant construction environments.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Square drive: 3/4"
• Maximum torque: 880 Nm
• Screws up to: M30
• Designed for underwater operation
• ATEX: II2GExhIIBT6Gb

Technical data
ORDER NO.: 6 1316 0070
ATEX specification: II2GExhIIBT6Gb
Energy source: Pneumatic
Operating pressure: 6 bar
Square drive: 3/4"
Screws up to: M30 mm
Air consumption: 1.40 m³/min
Max. torque: 880 Nm
Distance centre to outer edge: 45.00 mm
Connection: R1/2" female
Noise level LpA: 96.0 dB(A)
Noise level LWA: 107.0 dB(A)
Vibration level: 4.5 m/s²
Weight: 5.6 kg
Fields of application: Energy and pipeline construction; Metal and steel construction; Plant and mechanical engineering; Underwater work

Accessories

• Hexagon sockets (standard length) — examples: 9 1408 0390 (SW17), 9 1408 0400 (SW19), 9 1408 0410 (SW22)
• Hexagon sockets (extra long) — examples: 9 1408 0510 (SW22), 9 1408 0520 (SW24)
• Hexagon sockets for Allen head screws — examples: 9 1424 0540 (SW17), 9 1424 0550 (SW19)
• Extensions — 9 1420 0100 (175 mm), 9 1420 0110 (250 mm), 9 1420 0120 (330 mm)
• Universal joint — 9 1422 0070
• Service units — 9 2406 0260, 9 2406 0650
• Hoses — 9 3610 0410 / 0420 / 0430 (ID 13–19 mm)
• Misc: Multi oil 9 9902 0120; more accessories on request

Key specifications

• Order No.: 6 1316 0070
• ATEX: II2GExhIIBT6Gb
• Max. torque: 880 Nm
• Square drive: 3/4"
• Operating pressure: 6 bar
• Screws up to: M30
• Air consumption: 1.40 m³/min
• Weight: 5.6 kg
