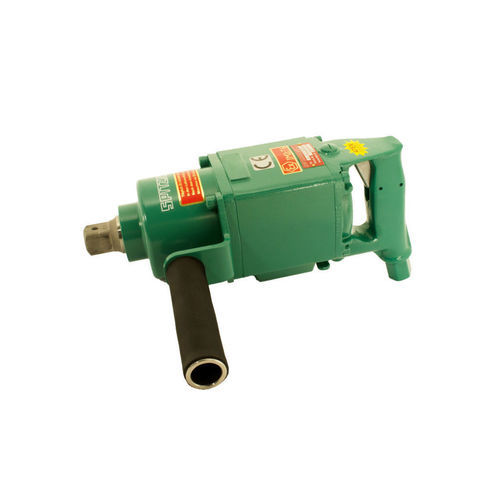

Pneumatic impact wrench 6 1410 0010

1"ATEXfor heavy-duty applications

Product description
This 1" pneumatic impact wrench (Order No. 6 1410 0010) delivers up to 1,500 Nm and is certified for use in ATEX zone equipment group II. Designed for heavy‑duty bolting tasks in energy, pipeline and steel construction, it accepts screws up to M36 and features a 1/2" female connection.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Square drive: 1"
• Max. torque: 1,500 Nm
• ATEX: II2GExhIIBT6Gb

Technical data

• ORDER NO.: 6 1410 0010
• ATEX Specification: II2GExhIIBT6Gb
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Square drive: 1"
• Screws up to: M36
• Air consumption: 1.60 m³/min
• Max. torque: 1,500 Nm
• Distance center to outer edge: 57.00 mm
• Connection: R1/2" female
• Noise level LpA: 92.0 dB(A)
• Noise level LWA: 101.0 dB(A)
• Vibration level: 6.2 m/s²
• Weight: 11.0 kg
• Fields of application: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction

Accessories (selection)
Hexagon sockets, standard length
Examples: Order No. 9 1408 0580 – 1", SW 24, Length 55.00 mm, Diameter 42.50 mm; 9 1408 0590 – SW 27, Length 55.00 mm, Diameter 46.00 mm; 9 1408 0600 – SW 30, Length 57.00 mm, Diameter 50.00 mm; 9 1408 0610 – SW 32, Length 57.00 mm, Diameter 52.00 mm; 9 1408 0620 – SW 36, Length 60.00 mm, Diameter 55.00 mm.

Hexagon sockets, extra long
Examples: Order No. 9 1408 0690 – 1", SW 24, Length 100.00 mm; 9 1408 0700 – SW 27, Length 100.00 mm; 9 1408 0710 – SW 30, Length 100.00 mm; 9 1408 0720 – SW 32, Length 100.00 mm.

Hexagon sockets for allen head screws
Examples: Order No. 9 1424 0440 – 1", SW 17, Length 75.00 mm; 9 1424 0450 – SW 19, Length 75.00 mm; 9 1424 0460 – SW 22, Length 75.00 mm; 9 1424 0470 – SW 24, Length 75.00 mm.

Extensions
Examples: Order No. 9 1420 0140 – Extension 1"→1", Length 175.00 mm; 9 1420 0150 – Length 250.00 mm; 9 1420 0160 – Length 330.00 mm.

Universal joint
Example: Order No. 9 1422 0090 – Universal joint 1"→1", Length 100.00 mm.

Service units
Examples: Order No. 9 2406 0260 – Portable service unit with pressure regulator 3/4"; 9 2406 0650 – Portable service unit with protection housing and pressure regulator 3/4".

Hoses
Examples: Order No. 9 3610 0410 – Pneumatic pressure hose ID 13 mm, 2.5 m; 9 3610 0420 – ID 16 mm, 2.5 m; 9 3610 0430 – ID 19 mm, 2.5 m.

Miscellaneous accessories
Example: Order No. 9 9902 0120 – Multi oil for cleaning and protection. More accessories available on request.

Technical specifications

• ORDER NO.: 6 1410 0010
• ATEX Specification: II2GExhIIBT6Gb
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Square drive: 1"
• Screws up to: M36
• Air consumption: 1.60 m³/min
• Max. torque: 1,500 Nm
• Distance center to outer edge: 57.00 mm
• Connection: R1/2" female
• Noise level LpA: 92.0 dB(A)
• Noise level LWA: 101.0 dB(A)
• Vibration level: 6.2 m/s²
• Weight: 11.0 kg
• Fields of application: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction
