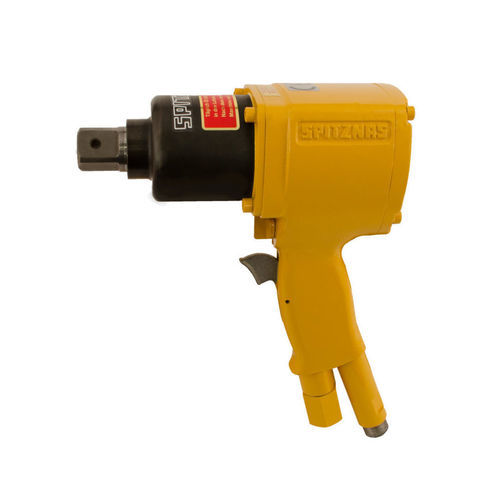

Pneumatic impact wrench 6 1316 0060

1"ATEXcompact

Product description
Pneumatic impact wrench engineered for underwater applications. Compact 1" square drive tool delivering up to 880 Nm of torque, ATEX-certified II2GExhIIBT6Gb for use in potentially explosive atmospheres. Suited for energy and pipeline construction, metal and steel construction, and plant and mechanical engineering.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Square drive: 1"
• Max. torque: 880 Nm
• ATEX: II2GExhIIBT6Gb
• Weight: 5.7 kg

Technical Data
ORDER NO.: 6 1316 0060
ATEX Specification: II2GExhIIBT6Gb
Energy source: Pneumatic
Operating pressure: 6 bar
Square drive: 1"
Screws up to: M30
Air consumption: 1.40 m³/min
Max. torque: 880 Nm
Distance center to outer edge: 45.00 mm
Connection: R1/2" female
Noise level LpA: 96.0 dB(A)
Noise level LWA: 107.0 dB(A)
Vibration level: 4.5 m/s²
Weight: 5.7 kg
Fields of application: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction

Accessories
Available accessories include standard and extra-long hexagon sockets (24–65 mm), sockets for Allen head screws, extensions (175–330 mm), universal joint, portable service units with pressure regulator and protection housing, pneumatic hoses (ID 13–19 mm) and multi oil for cleaning/protection. More accessories and exact order numbers available on request.
