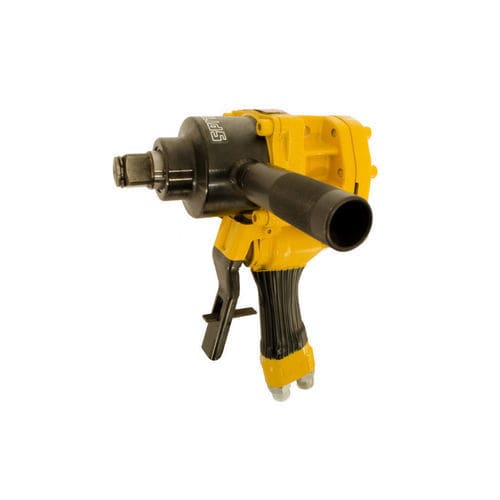

Hydraulic impact wrench 6 1518 0010

3/4"ATEX

Product description
The hydraulic impact wrench is designed for open-circuit hydraulic systems and is certified for ATEX machine group I.

Main attributes

• Order Number: 6 1518 0010
• Energy source: Hydraulic
• Operating pressure: 70-140 bar
• Square drive: 3/4"
• Max. torque: 1,700 Nm
• Typical application: Underground mining
• ATEX: IM2ExhIMbT5

Technical Data

• ORDER NO. — 6 1518 0010
• ATEX Specification — IM2ExhIMbT5
• Energy source — Hydraulic
• Operating pressure — 70-140 bar
• Square drive — 3/4"
• Screws up to — M30 mm
• Volume flow — 20-40 l/min
• Max. torque — 1,700 Nm
• Adjustable torque — 350-1,700 Nm
• Distance center to outer edge — 45.00 mm
• Impacts — 1,200 rpm
• Width without 2nd handle — 100.00 mm
• Connection — M18x1.5 mm
• Hydraulic hose connection — Flat-Star A250-OM/OF-1/2"BSP
• Hydraulic medium — Hydraulic oil
• Hydraulic circuit — open circuit
• Oil filtration — ISO level of purity 20/18/13
• Temperature of oil — -34 up to +82 °C
• Viscosity of oil — >13 centistokes
• Noise level LpA — 85.3 dB(A)
• Noise level LWA — 96.3 dB(A)
• Vibration level — 3.8 m/s²
• Weight — 9.0 kg
• Fields of application / branch — Energy and pipeline construction; Metal industry and steel construction; Mining; Plant and mechanical construction

Accessories (categories and items)
Hexagon sockets, standard length
ORDER NO. — Description — Square drive [inch] — Wrench width SW [mm] — Length [mm] — Diameter [mm]

• 9 1408 0390 — Hexagon socket, standard length — 3/4" — 17 — 50.00 — 31.00
• 9 1408 0400 — Hexagon socket, standard length — 3/4" — 19 — 50.00 — 33.50
• 9 1408 0410 — Hexagon socket, standard length — 3/4" — 22 — 50.00 — 37.00
• 9 1408 0420 — Hexagon socket, standard length — 3/4" — 24 — 50.00 — 40.00
• 9 1408 0430 — Hexagon socket, standard length — 3/4" — 27 — 53.00 — 43.50
• 9 1408 0440 — Hexagon socket, standard length — 3/4" — 30 — 53.00 — 47.00
• 9 1408 0450 — Hexagon socket, standard length — 3/4" — 32 — 57.00 — 50.00
• 9 1408 0460 — Hexagon socket, standard length — 3/4" — 36 — 56.00 — 52.00
• 9 1408 0470 — Hexagon socket, standard length — 3/4" — 41 — 58.00 — 61.50
• 9 1408 0480 — Hexagon socket, standard length — 3/4" — 46 — 64.00 — 63.00

Hexagon sockets, extra long
ORDER NO. — Description — Square drive [inch] — Wrench width SW [mm] — Length [mm] — Diameter [mm]

• 9 1408 0510 — Hexagon socket, extra long — 3/4" — 22 — 95.00 — 38.00
• 9 1408 0520 — Hexagon socket, extra long — 3/4" — 24 — 95.00 — 40.00
• 9 1408 0530 — Hexagon socket, extra long — 3/4" — 27 — 95.00 — 43.00
• 9 1408 0540 — Hexagon socket, extra long — 3/4" — 30 — 95.00 — 47.00
• 9 1408 0550 — Hexagon socket, extra long — 3/4" — 32 — 95.00 — 49.00
• 9 1408 0560 — Hexagon socket, extra long — 3/4" — 36 — 95.00 — 54.00

Hexagon sockets for allen head screws
ORDER NO. — Description — Square drive [inch] — Wrench width SW [mm] — Length [mm] — Diameter [mm]

• 9 1424 0540 — Hexagon socket for allen head screws — 3/4" — 17 — 85.00 — 44.00
• 9 1424 0550 — Hexagon socket for allen head screws — 3/4" — 19 — 85.00 — 44.00
• 9 1424 0660 — Hexagon socket for allen head screws — 3/4" — 22 — 85.00 — 44.00
• 9 1424 0670 — Hexagon socket for allen head screws — 3/4" — 24 — 85.00 — 44.00

Extensions
ORDER NO. — Description — Tool square drive [inch] — Output square drive [inch] — Length [mm] — Diameter [mm]

• 9 1420 0100 — Extension — 3/4" — 3/4" — 175.00 — 44.00
• 9 1420 0110 — Extension — 3/4" — 3/4" — 250.00 — 44.00
• 9 1420 0120 — Extension — 3/4" — 3/4" — 330.00 — 44.00

Universal joint
ORDER NO. — Description — Tool square drive [inch] — Output square drive [inch] — Length [mm] — Diameter [mm]

• 9 1422 0070 — Universal joint — 3/4" — 3/4" — 65.00 — 44.00

Miscellaneous Accessories
ORDER NO. — Description

• 9 9902 0120 — Multi oil for cleaning and protection
• More accessories on request.
