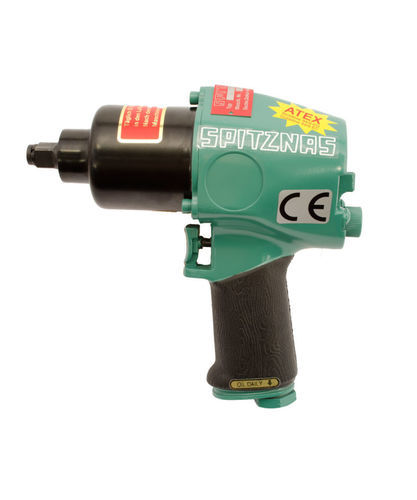

Pneumatic impact wrench 6 1034 0010

1/2"ATEXfor heavy-duty applications

Product overview
This pneumatic impact wrench (Order No. 6 1034 0010) is designed for heavy-duty industrial use where a compact, low-weight tool with ATEX approval is required. It features a 1/2" square drive and delivers up to 610 Nm of torque, suitable for mounting and maintenance tasks in energy, pipeline and plant construction.

Main attributes

• Order Number: 6 1034 0010
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Square drive: 1/2"
• Max. torque: 610 Nm
• ATEX: II2GExhIIBT6Gb

Technical data

• Order no.: 6 1034 0010
• ATEX specification: II2GExhIIBT6Gb
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Square drive: 1/2"
• Screws up to: M20
• Air consumption: 0.32 m³/min
• Max. torque: 610 Nm
• Distance centre to outer edge: 47.5 mm
• Connection: R1/4" female
• Noise level LpA: 90.0 dB(A)
• Noise level LWA: 101.0 dB(A)
• Vibration level: 2.6 m/s²
• Weight: 2.5 kg
• Fields of application: Energy and pipeline construction; Metal industry and steel construction; Plant and mechanical construction

Accessories
Hexagon sockets, standard length

• 9 1408 1290 — Hexagon socket, standard length — Square drive: 1/2" — Wrench width SW: 8 mm — Length: 40.00 mm — Diameter: 15.00 mm
• 9 1408 1310 — Hexagon socket, standard length — Square drive: 1/2" — Wrench width SW: 10 mm — Length: 40.00 mm — Diameter: 17.00 mm
• 9 1408 1320 — Hexagon socket, standard length — Square drive: 1/2" — Wrench width SW: 13 mm — Length: 40.00 mm — Diameter: 21.00 mm
• 9 1408 0110 — Hexagon socket, standard length — Square drive: 1/2" — Wrench width SW: 14 mm — Length: 40.00 mm — Diameter: 23.00 mm
• 9 1408 0120 — Hexagon socket, standard length — Square drive: 1/2" — Wrench width SW: 17 mm — Length: 40.00 mm — Diameter: 26.00 mm
• 9 1408 0130 — Hexagon socket, standard length — Square drive: 1/2" — Wrench width SW: 19 mm — Length: 40.00 mm — Diameter: 28.50 mm
• 9 1408 0140 — Hexagon socket, standard length — Square drive: 1/2" — Wrench width SW: 22 mm — Length: 40.00 mm — Diameter: 32.50 mm
• 9 1408 0150 — Hexagon socket, standard length — Square drive: 1/2" — Wrench width SW: 24 mm — Length: 45.00 mm — Diameter: 35.00 mm
• 9 1408 0160 — Hexagon socket, standard length — Square drive: 1/2" — Wrench width SW: 27 mm — Length: 50.00 mm — Diameter: 38.00 mm
• 9 1408 0170 — Hexagon socket, standard length — Square drive: 1/2" — Wrench width SW: 30 mm — Length: 50.00 mm — Diameter: 42.00 mm

Hexagon sockets, extra long

• 9 1408 0190 — Hexagon socket, extra long — Square drive: 1/2" — Wrench width SW: 14 mm — Length: 80.00 mm — Diameter: 21.00 mm
• 9 1408 0200 — Hexagon socket, extra long — Square drive: 1/2" — Wrench width SW: 17 mm — Length: 80.00 mm — Diameter: 24.00 mm
• 9 1408 0210 — Hexagon socket, extra long — Square drive: 1/2" — Wrench width SW: 19 mm — Length: 80.00 mm — Diameter: 26.00 mm
• 9 1408 0220 — Hexagon socket, extra long — Square drive: 1/2" — Wrench width SW: 22 mm — Length: 80.00 mm — Diameter: 30.00 mm
• 9 1408 0230 — Hexagon socket, extra long — Square drive: 1/2" — Wrench width SW: 24 mm — Length: 80.00 mm — Diameter: 32.00 mm
• 9 1408 0240 — Hexagon socket, extra long — Square drive: 1/2" — Wrench width SW: 27 mm — Length: 80.00 mm — Diameter: 36.50 mm

Hexagon sockets for allen head screws

• 9 1424 0570 — Hexagon socket for allen head screws — Square drive: 1/2" — Wrench width SW: 5 mm — Length: 55.00 mm — Diameter: 30.00 mm
• 9 1424 0580 — Hexagon socket for allen head screws — Square drive: 1/2" — Wrench width SW: 6 mm — Length: 55.00 mm — Diameter: 30.00 mm
• 9 1424 0590 — Hexagon socket for allen head screws — Square drive: 1/2" — Wrench width SW: 8 mm — Length: 55.00 mm — Diameter: 30.00 mm
• 9 1424 0600 — Hexagon socket for allen head screws — Square drive: 1/2" — Wrench width SW: 10 mm — Length: 55.00 mm — Diameter: 30.00 mm
• 9 1424 0610 — Hexagon socket for allen head screws — Square drive: 1/2" — Wrench width SW: 12 mm — Length: 55.00 mm — Diameter: 30.00 mm

Extensions

• 9 1420 0050 — Extension — Tool square drive: 1/2" — Output square drive: 1/2" — Length: 125.00 mm — Diameter: 25.00 mm
• 9 1420 0060 — Extension — Tool square drive: 1/2" — Output square drive: 1/2" — Length: 250.00 mm — Diameter: 25.00 mm

Universal joint

• 9 1422 0040 — Universal joint — Tool square drive: 1/2" — Output square drive: 1/2" — Length: 75.00 mm — Diameter: 30.00 mm

Service units

• 9 2406 0260 — Portable service unit with pressure regulator 3/4"
• 9 2406 0650 — Portable service unit with protection housing and pressure regulator 3/4"

Hoses

• 9 3610 0410 — Pneumatic pressure hose ID 13 mm, 2.5 m length, screw-on claw clamp
• 9 3610 0420 — Pneumatic pressure hose ID 16 mm, 2.5 m length, screw-on claw clamp
• 9 3610 0430 — Pneumatic pressure hose ID 19 mm, 2.5 m length, screw-on claw clamp

Miscellaneous Accessories

• 9 9902 0120 — Multi oil for cleaning and protection
• More accessories on request (as listed on the product page).

Specifications

• Max. torque: 610 Nm
• Square drive: 1/2"
• Operating pressure: 6 bar
• Air consumption: 0.32 m³/min
• Screws up to: M20
• Connection: R1/4" female
• Noise LpA / LWA: 90.0 dB(A) / 101.0 dB(A)
• Vibration level: 2.6 m/s²
• Weight: 2.5 kg
• ATEX: II2GExhIIBT6Gb
