TIG welding machine TECHNOLOGY 236 XT
MMAmanualstandalone

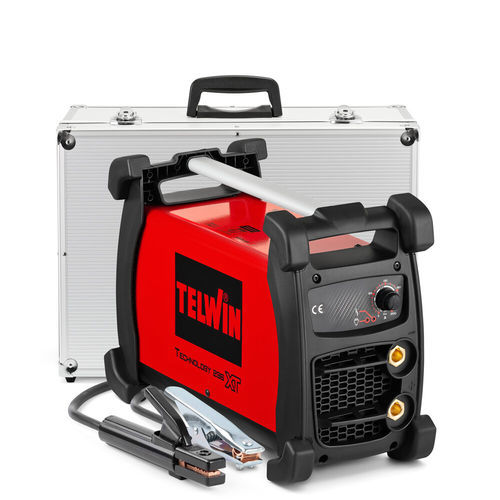

TIG welding machine - TECHNOLOGY 236 XT - TELWIN - MMA / manual / standalone
TIG welding machine - TECHNOLOGY 236 XT - TELWIN - MMA / manual / standalone
TIG welding machine - TECHNOLOGY 236 XT - TELWIN - MMA / manual / standalone - image - 2
TIG welding machine - TECHNOLOGY 236 XT - TELWIN - MMA / manual / standalone - image - 3
Add to favorites
Compare this product
Go to the TELWIN website for more information

Characteristics

Technique
TIG, MMA
Operational mode
manual
Configuration
standalone
Applications
for stainless steel
Power supply
230V single phase
Other characteristics
inverter, compact
Power

Min.: 3,300 W
(4.487 hp)

Max.: 6,000 W
(8.158 hp)

Description

Overview
  • DC MMA and TIG inverter welding machine with scratch start and digital display. Max welding current 200 A (EN60974-1) with compact, impact-resistant chassis. Supplied with MMA accessories and aluminium carry case.


Key features
  • DC output for MMA and TIG (scratch start).
  • Advanced arc control: arc force, hot start, anti-stick.
  • Wide electrode compatibility: rutile, basic, stainless steel, cast iron, up to 4 mm.
  • Ø 50 mm quick connector (socket) and sturdy metal handle for transport.
  • High current stability despite mains voltage variations; compatible with motor generator (230 V ±15%).
  • Thermostatic, overvoltage, undervoltage and overcurrent protections.
  • Energy-efficient inverter technology for reduced consumption.


Applications
  • Maintenance and repair in workshops and industrial sites.
  • On-site fabrication and construction where portability and robustness are required.
  • General-purpose welding with various electrodes and light DC TIG tasks.


Technical specifications
  • Code: 816259
  • Single-phase mains voltage: 230 V
  • Mains frequency: 50 / 60 Hz
  • Current control range (DC): 5 - 200 A
  • Max current DC (EN60974-1): 200 A @ 35% duty cycle
  • DC current (60%): 140 A
  • Max no-load voltage: 60 V
  • Max absorbed current: 38 A
  • Absorbed current at 60%: 22 A
  • Max absorbed power: 6 kW
  • Absorbed power at 60%: 3.3 kW
  • Minimum motor generator power: 10 kW
  • Efficiency: 89 %
