MMA welding machine SUPERMIG 600i XD
TIGmanualfor aluminum

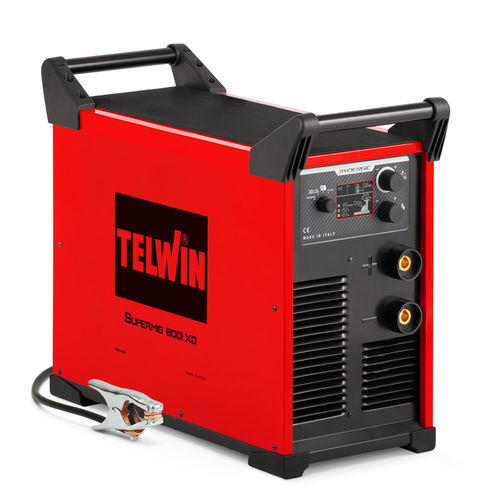

MMA welding machine - SUPERMIG 600i XD - TELWIN - TIG / manual / for aluminum
MMA welding machine - SUPERMIG 600i XD - TELWIN - TIG / manual / for aluminum
MMA welding machine - SUPERMIG 600i XD - TELWIN - TIG / manual / for aluminum - image - 2
Add to favorites
Compare this product
Go to the TELWIN website for more information

Characteristics

Technique
MMA, TIG
Operational mode
manual
Applications
for aluminum, for metal, for stainless steel
Power supply
400V three-phase
Other characteristics
inverter, high-power, compact
Power

Min.: 22,400 W
(30.456 hp)

Max.: 22,500 W
(30.591 hp)

Description

Overview
  • Inverter welding machine for MMA (electrode) and TIG DC-Lift processes, model SUPERMIG 600i XD, rated for up to 400 A. Three-phase supply 230/400 V. XD version provides a high duty cycle for continuous and heavy-duty applications.
  • Electrode welding in DC and pulsed modes (MMA Pulse). Pulsed mode recommended for basic electrodes in positional welding to reduce spatter and rework. VRD device included.
  • Gouging function using carbon electrodes.
  • Graphic backlit display showing main welding parameters and settings.
  • Construction protects electronics from dust and shocks via tunnel ventilation; compact and transportable with reduced weight; energy-efficient.


MMA
  • Operates in direct and pulsed current (MMA PULSE).
  • Compatible with cellulose, aluminium-coated (E4043), rutile, basic, stainless steel and cast iron electrodes; electrode diameter 1.6 - 8 mm.
  • Adjustments: hot start, arc force; anti-stick protection.
  • VRD device; welding voltage and current displayed on LCD.


TIG
  • DC LIFT ignition for TIG; welding voltage and current displayed on LCD.


GOUGING
  • Gouging function with voltage and current monitoring on display (uses carbon electrodes).


Protections and compatibility
  • Thermostatic protection; overvoltage (+15%) and undervoltage (-25%) protection; overcurrent protection.
  • Compatible with motor-generator sets.
  • Supplied with work cable and clamp.


Technical specifications
  • Code: 816913
  • Three phase mains voltage: 230 / 400 V
  • Mains frequency: 50 / 60 Hz
  • Max current DC EN60974-1: 500 A @ 60%
  • Current control range DC: 20 - 600 A
  • Current 60% DC: 500 A
  • Current 100% DC: 400 A
  • Max absorbed current: 39 A
  • Max DC no-load voltage: 71 V
  • Range V out MIG: 9 - 39 V
  • Absorbed current at 60%: 39.1 A
  • Absorbed power at 60%: 22.5 kW
  • Max absorbed power: 22.4 kW
  • Fuse: 32 A
  • Efficiency: 89 %
  • Electrode diameter: 1.6 - 8 mm
  • Supply cable length: 3 m
  • Standards: EN 60974-1 / -5 / -10
  • Protection degree: IP23
  • Dimensions: 63 x 27.4 x 50 cm
  • Weight: 38.30 kg
