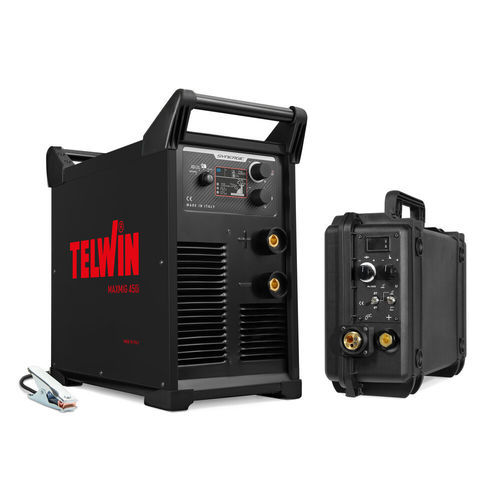

MMA welding machine MAXMIG 450i BASE

TIGMAGMIG

Short description

• Multiprocess inverter welder (MIG-MAG / FLUX / BRAZING / MMA / TIG DC-Lift / GOUGING) with external 4-roll wire feeder in a shock-proof carry case. Rated for 400 A operation on 3-phase 230/400 V networks, engineered for intensive professional use on construction sites, shipyards, mines, pipelines, metal fabrication and industrial maintenance.
• External feeder in a robust, impact- and environment-resistant case; compact, lightweight and equipped with an ergonomic handle for easy transport on site and in workshops.
• OneTouch synergic adjustment with 40 pre-set curves and LCD display for wire speed, welding voltage and current. Selectable 2T/4T modes and spot welding.
• MMA: DC and pulsed modes (MMA PULSE). VRD safety device. Gouging function. TIG: DC-Lift striking.
• Special ventilation tunnel protects electronic components from dust and dirt to increase reliability and service life.
• Durable, dust- and impact-resistant construction with reduced weight and high energy efficiency.

Description
The MAXMIG 450i BASE is a flexible multiprocess inverter welding system designed for heavy professional workloads and harsh environments. It supports steel, stainless steel, high-strength steels and aluminium across MIG-MAG, FLUX, brazing, MMA and TIG DC-Lift processes, plus gouging. ONE TOUCH synergic setup simplifies parameter selection: choose material and thickness and start welding. The graphic LCD provides immediate feedback on wire speed, voltage and current while intelligent arc control (ATC) stabilizes the arc across varying conditions. Operators can fine-tune arc length and parameters manually from the wire feeder for process tailoring.

Key advantages

• High versatility across welding processes and materials to reduce the number of deployed machines.
• Portable external 4‑roller feeder in a shock-proof case for reliable on-site operation.
• Fast, user-friendly parameter setup with 40 synergic curves and clear LCD feedback.
• Dedicated ventilation tunnel protecting electronics from dust and contaminants for longer uptime.
• Advanced arc control (ATC) and pulsed MMA modes to improve results on thin materials and difficult joints.

Features

• Robust, impact- and dust-resistant construction; reduced weight and compact footprint for portability.
• High energy efficiency and optimized cooling with dedicated ventilation tunnel.
• Backlit LCD showing wire speed, welding voltage and current.
• MIG-MAG: manual and synergic modes; 40 pre-set synergic curves; 2T/4T selection; spot welding; wire upslope; electronic reactance adjustment; burn-back time; post-gas control; ATC arc control; remote adjustments accessible from wire feeder unit.
• MMA: DC and pulsed current modes (MMA PULSE); hot start; arc force; antistick; VRD for safety; voltage and current visualization on display.
• TIG: DC-Lift ignition with display of voltage and welding current.
• GOUGING: gouging function with carbon electrodes and visualization of gouging voltage/current.
• Protections: thermostat, overvoltage (+15%), undervoltage (-25%), overcurrent, motor‑generator protection.
• Included accessories: work cable with clamp and external wire feeder unit in carry case.

Technical specifications

• Processes: MIG-MAG, FLUX, BRAZING, MMA (DC and pulse), TIG DC-Lift, GOUGING.
• Rated / max current: 400 A (designed for heavy-duty 400 A operation).
• Wire feeder: external 4‑roller wire feeder unit in shock-proof carry case.
• Power supply: 3-phase 230/400 V.
• Synergic curves: 40 pre-set curves; ONE TOUCH synergic adjustment.
• Display: graphic LCD for wire speed, welding voltage and current.
• MIG functions: manual and synergic operation, 2T/4T selection, spot welding, upslope, electronic reactance, burn-back time, post gas, ATC arc control, remote adjustments from feeder.
• MMA functions: DC and pulse modes (MMA PULSE), hot start, arc force, antistick, VRD.
• TIG functions: DC-Lift striking with voltage/current visualization.
• Gouging: function available (carbon electrodes) with voltage/current visualization.
• Protections: thermostat, over/under voltage, overcurrent, motor-generator protection.
• Cooling: dedicated ventilation tunnel protecting electronics from dirt and dust.
• Construction: impact- and dust-resistant, compact and portable.
• Included: work cable and clamp, external wire feeder in carry case.
• Applications: construction sites, shipyards, mines, pipelines, metal fabrication, industrial maintenance and other demanding professional environments.
