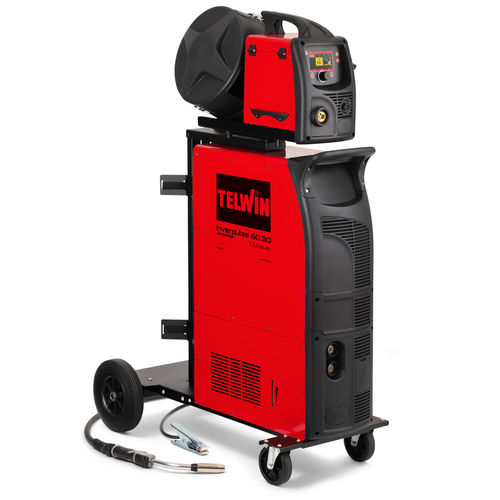

MAG welding machine INVERPULSE 60.30 WAVEMIGMMATIG
Add to favorites
Compare this product
Characteristics
- Technique
- MAG, MIG, MMA, TIG
- Applications
- for steel, for aluminum alloys, galvanized steel, for stainless steel
- Power supply
- 400V three-phase
- Other characteristics
- CE, with data logging, inverter
- Power
Max.: 277,128 W
(376.789 hp)Min.: 0 W
(0 hp)
Description
Overview
Operating system & modes
Advanced welding features
Interface & traceability
Efficiency & options
Icons / Options visible
Technical specifications
- Inverter multiprocess welding machine for continuous and pulse operation (MIG-MAG / FLUX / BRAZING / MMA / TIG DC-Lift) with external 4-roller wire feeder. Rated up to 400 A. 3-phase 230/400 V supply.
- Wave OS operating system with EASY and EXPERT modes for a customisable work environment.
- Supports pulse and double pulse modes (PULSE / POP) and advanced arcs for specialised applications.
Operating system & modes
- Wave OS platform with EASY and EXPERT modes.
- Ability to create, save and recall customised welding programs; export via USB or cloud (optional).
- Synergic parameter adjustment to simplify setup.
Advanced welding features
- Pulse and double pulse (PULSE / POP) for improved control on diverse materials and brazing.
- Specialised arc modes: ROOT-MIG, ATC, DEEP MIG for specific applications.
- Extensive adjustable parameters for fine tuning (start/end currents, arc corrections, ramps, pre/post gas).
Interface & traceability
- User-friendly TFT colour display showing wire speed, voltage and welding current.
- Data traceability: save welding data and programs to USB; optional cloud export for analysis and reporting.
Efficiency & options
- High performance with reduced consumption; designed for industrial cycles.
- Compatible with steel, stainless steel, aluminium and galvanised/zinc-coated sheets.
- Supports remote control, VRD safety function, TIG LIFT ignition and external accessories.
Icons / Options visible
- Multiprocess support: MIG-MAG, FLUX, BRAZING, MMA, TIG DC-Lift.
- Wave OS, PULSE, POP, ROOT-MIG, ATC, DEEP MIG.
- TFT display, USB data saving, external 4-roller feeder (max spool 15 kg, 300 mm), remote control support, CE/EAC marks, 5-year warranty icon.
Technical specifications
- Model: INVERPULSE 60.30 WAVE
- Type: Inverter multiprocess welding machine (MIG-MAG / FLUX / BRAZING / MMA / TIG DC-Lift)
- Max welding current: up to 400 A (depending on configuration)
- Wire feeder: external 4-roller unit; supports spools up to 15 kg, 300 mm
- Supply: 3-phase 230/400 V
- Operating modes: continuous, pulse; PULSE and POP (double pulse)
- Software: Wave OS with EASY and EXPERT modes; create/save/recall customised programs
- Interface: TFT colour screen
- Advanced arcs: ROOT-MIG, ATC, DEEP MIG
- Traceability: USB data saving; optional cloud platform
- Safety / compliance: VRD (voltage reduction), CE, EAC (where applicable)
- Accessories: remote control support, TIG LIFT, max spool 15 kg (300 mm)
- Warranty indication: 5 years (icon)
