TIG welding machine SUPERMIG 505i XD
MIGMMAMAG

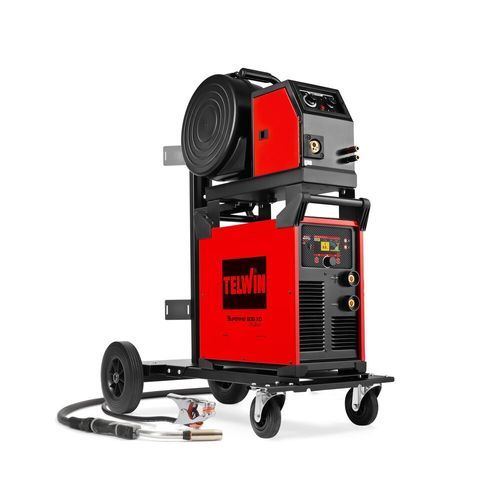

TIG welding machine - SUPERMIG 505i XD - TELWIN - MIG / MMA / MAG
TIG welding machine - SUPERMIG 505i XD - TELWIN - MIG / MMA / MAG
Add to favorites
Compare this product
Go to the TELWIN website for more information

Characteristics

Technique
TIG, MIG, MMA, MAG, pulse, arc
Operational mode
manual
Configuration
with trolley
Applications
for aluminum alloys, for stainless steel, for steel
Power supply
400V three-phase
Other characteristics
inverter, variable-speed, compact
Power

Min.: 16,600 W
(22.57 hp)

Max.: 16,700 W
(22.706 hp)

Description

Short description
  • Multi‑process inverter welding machine (MIG‑MAG/FLUX/BRAZING/MMA/TIG DC‑Lift) with external 4‑roller wire feeder and trolley. XD version with high duty cycle for continuous operation and heavy‑duty applications. Three‑phase 230/400 V supply, up to 400 A.


Features
  • WAVE OS operating system with EASY and EXPERT modes; synergic parameter adjustment with 18 preset curves and USB program create/save/export.
  • Pulsed and double‑pulsed operation (PULSE and POP); synergic and manual modes (SYN/MAN); ATC and advanced arc control.
  • TFT graphic display showing wire speed, voltage and current; 2/4‑stroke and spot selection; up to 18 adjustable parameters.
  • Tunnel ventilation protects electronics from dust and contaminants; robust, compact and transportable structure.


MIG‑MAG
  • Wave OS with EASY and EXPERT environments and 18 pre‑set synergic curves (expandable with option packages).
  • Display of wire feed speed, welding voltage and current; control from external wire feeder (manual feed, MAN mode, SYN mode).
  • 2/4‑stroke and spot welding selection; advanced adjustment of start/end currents, arc corrections, ramp‑up/ramp‑down, pre/post gas; ATC.


MMA
  • Hot start and arc force adjustments, anti‑stick protection, VRD device; display of welding voltage and current.


TIG
  • DC Lift ignition with parameter display (voltage and current).


Included / Supplied
  • Complete with MIG‑MAG torch, cable and earth clamp, 4‑roller wire feeder unit, connection cables and Federal trolley.


Technical specifications
  • Code: 816857
  • Three‑phase mains voltage: 230 / 400 V
  • Mains frequency: 50 / 60 Hz
  • Max current DC (EN60974‑1): 400 A @ 60%
  • Current control range DC: 20 - 400 A
  • Current 60% DC: 400 A
  • Current 100% DC: 300 A
  • Max absorbed current: 30 A
  • Max DC no‑load voltage: 67 V
  • Output voltage range (MIG): 9 - 34 V
  • Absorbed current at 60%: 30.2 A
  • Absorbed power at 60%: 16.7 kW
  • Max absorbed power: 16.6 kW
  • Fuse: 25 A
  • Efficiency: 86 %
  • Electrode diameter (MMA): 1.6 - 8 mm
  • Steel welding wire diameter: 0.6 - 1.6 mm
  • INOX welding wire diameter: 0.8 - 1.6 mm
  • Aluminium welding wire diameter: 0.8 - 1.6 mm
  • Flux‑cored welding wire diameter: 0.8 - 1.6 mm
  • Brazing wire diameter: 0.8 - 1.2 mm
  • Wire speed range: 1.5 - 20 m/min
  • Supply cable length: 3 m
  • Standards: EN 60974‑1 / ‑5 / ‑10
  • Protection degree: IP23
  • Dimensions: 100 x 50 x 110 cm
  • Weight: 74.90 kg
