MMA welding machine INVERPULSE 60.40 WAVE AQUA
arcMAGMIG

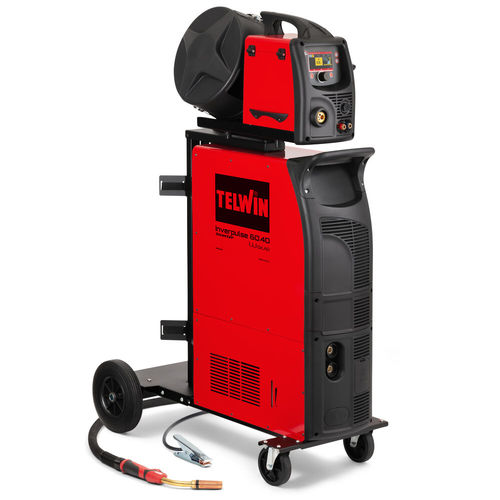

MMA welding machine - INVERPULSE 60.40 WAVE AQUA - TELWIN - arc / MAG / MIG
MMA welding machine - INVERPULSE 60.40 WAVE AQUA - TELWIN - arc / MAG / MIG
MMA welding machine - INVERPULSE 60.40 WAVE AQUA - TELWIN - arc / MAG / MIG - image - 2
MMA welding machine - INVERPULSE 60.40 WAVE AQUA - TELWIN - arc / MAG / MIG - image - 3
MMA welding machine - INVERPULSE 60.40 WAVE AQUA - TELWIN - arc / MAG / MIG - image - 4
MMA welding machine - INVERPULSE 60.40 WAVE AQUA - TELWIN - arc / MAG / MIG - image - 5
MMA welding machine - INVERPULSE 60.40 WAVE AQUA - TELWIN - arc / MAG / MIG - image - 6
Add to favorites
Compare this product
Go to the TELWIN website for more information

Characteristics

Technique
MMA, arc, MAG, MIG, TIG
Power supply
400V three-phase
Other characteristics
programmable, inverter, high-power, three-phase, water-cooled, with data logging, CE
Power

Max.: 10,000,000 W
(13,596.212 hp)

Min.: 0 W
(0 hp)

Description

Overview
  • Multiprocess inverter welding machine for continuous and pulse operation covering MIG‑MAG, FLUX, BRAZING, MMA and TIG DC‑Lift. External 4‑roller wire feeder and AQUA liquid cooling included.
  • Maximum welding current 500 A; power supply 3‑phase 230/400 V.


Operating system & user interface
  • Wave OS with EASY and EXPERT modes for a customisable work environment.
  • Colour TFT display for clear parameter visualisation and simplified navigation.


Wire feeder & accessories
  • Professional external 4‑roller feeder ensuring precise, constant wire feed; supports drums up to 300 mm (max ~15 kg depending on configuration), internal lighting and IP protection.
  • Compatible with air‑cooled and liquid‑cooled torches; interchangeable cable harness; remote control capability.


Pulse & advanced functions
  • Continuous, pulse (PULSE) and double pulse (POP) welding modes.
  • Advanced arc modes for specialised tasks: ROOT‑MIG, ATC and DEEP MIG.
  • Create, save and recall customised welding programs; synergic curves for simplified parameter setup.


Traceability & connectivity
  • Data logging and export via USB; optional cloud platform for storage and analysis of welding records.


Performance & safety
  • High welding performance with reduced consumption; integrated protection functions (thermal, over/under‑voltage, overcurrent) and VRD indicated.


Notable features (icons)
  • Multiprocess (MIG‑MAG, FLUX, BRAZING, MMA, TIG DC‑Lift), PULSE, POP, TIG LIFT, VRD, USB, 4‑roller feeder, AQUA cooling, CE / EAC.


Technical specifications
  • Model: INVERPULSE 60.40 WAVE AQUA
  • Type: Multiprocess inverter welding machine (MIG‑MAG / FLUX / BRAZING / MMA / TIG DC‑Lift)
  • Max current: 500 A
  • Power supply: 3‑phase 230/400 V
  • Wire feeder: external 4‑roller unit (supports up to 300 mm spools; ~15 kg max depending on config)
  • Cooling: AQUA liquid cooling unit
  • OS: Wave OS (EASY / EXPERT)
  • Pulse modes: PULSE and POP (double pulse)
  • Advanced arcs: ROOT‑MIG, ATC, DEEP MIG
  • Interface: TFT colour display
  • Data logging: USB (export); cloud platform optional
  • Additional: TIG Lift, VRD, remote control compatibility, CE / EAC compliance
