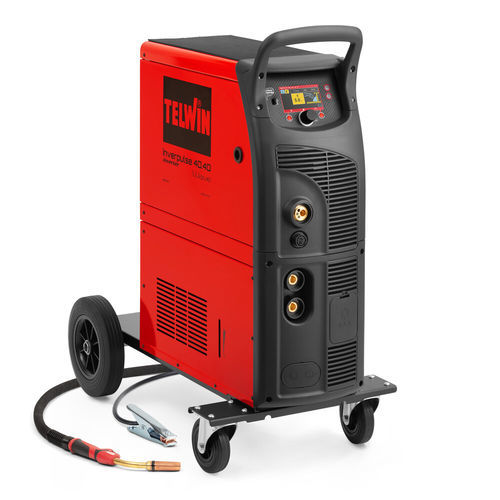

TIG welding machine INVERPULSE 40.40 WAVE AQUA

MAGMIGMMA

Short description

• Multiprocess inverter welding machine for continuous and pulse modes (MIG-MAG/FLUX/BRAZING/MMA/TIG DC‑Lift) with 4‑roll wire feeder, AQUA water cooling and Wave OS. Three‑phase 230/400 V, up to 400 A.

Description
The INVERPULSE 40.40 WAVE AQUA is a multiprocess inverter designed for industrial welding and maintenance environments. Wave OS offers EASY and EXPERT workspaces with synergetic parameter adjustment, plus storage and retrieval of custom welding programs.
Advanced arc modes (ROOT‑MIG, ATC, DEEP MIG) and pulse/double‑pulse (PULSE, POP) allow welding on steel, stainless steel, aluminium and brazed/galvanised sheets. Arc control is automatic and adaptive to materials and gases to maintain consistent results.
Operations are traceable via USB export or optional cloud storage. Unit includes VRD and is supplied with a 4M MIG‑MAG torch, cable, earth clamp and AQUA water cooling unit.

Main features

• Multiprocess: MIG‑MAG / FLUX / BRAZING / MMA / TIG DC‑Lift
• Wave OS with EASY and EXPERT modes; synergetic parameter control
• Pulse and double pulse: PULSE, POP
• Advanced arcs: ROOT‑MIG, ATC, DEEP MIG
• 4‑roll wire feeder and AQUA water cooling
• Traceability: save welding data via USB; cloud option
• Includes VRD; supplied torch, cable, earth clamp

Technical specifications

• Product code: 816851
• Model: INVERPULSE 40.40 WAVE AQUA
• Processes: MIG‑MAG / FLUX / BRAZING / MMA / TIG DC‑Lift
• Wire feeder: 4‑roll
• Current control range (DC): 20 – 400 A
• Maximum current (DC) EN60974‑1: 350 A @ 40%; Rated welding output: up to 400 A (depending on configuration)
• Current 60% DC: 270 A; Current 100% DC: 210 A
• Mains supply: three‑phase 230 / 400 V; 50 / 60 Hz
• Cooling: AQUA water cooling unit included
• Operating system: Wave OS (EASY / EXPERT)
• Pulse modes: PULSE, POP
• Interface: TFT colour screen
• Traceability: USB export; optional cloud platform
• Supplied accessories: 4M MIG‑MAG torch, cable, earth clamp, AQUA cooling unit
• Coil compatibility: standard coils up to 15 kg / 300 mm
• Certifications: CE, EAC
