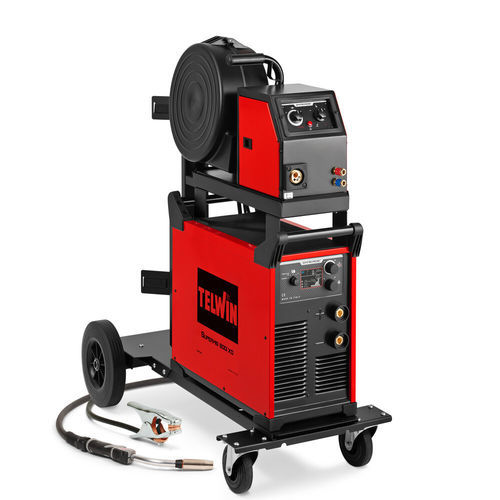

MIG welding machine SUPERMIG 600i XD

TIGMMAMAG

Overview
Multiprocess inverter welding machine (MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift and GOUGING) with external 4-roller wire feeder and trolley, 500 A. 3ph 230/400 V power supply. XD = high duty cycle for continuous machining and particularly heavy applications.

Key points

• OneTouch synergic adjustment with 40 preset synergic curves.
• LCD display of wire speed, welding voltage and current; 2/4 times and spot operation selection.
• MMA: direct and pulse current (MMA PULSE) operation; includes VRD device.
• Gouging process available; TIG-DC Lift functionality.
• Ventilation system with dedicated tunnel to protect electronic components from dirt and dust.
• Robust, impact- and dust-resistant construction; reduced weight and size; designed for high energy savings.

Detailed description
MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift multiprocess inverter welding machine with external wire feeder with 4 rolls. Flexible use with different materials (steel, stainless steel, high strength steel, aluminium, etc.) and a wide variety of application fields (industry, metal structures, construction, etc.). The XD model is characterised by a high duty cycle for continuous machining and particularly heavy applications. The particular construction of the ventilation system, following a dedicated tunnel, preserves the electronic components and guarantees longer duration over time. Made in Telwin ATC technology enables excellent welding standards on thin materials due to advanced arc control. The 4-roll feeder with 4 m cable bundle (direct connection) is robust and transportable, allowing remote control of the generator.

Features

• Robust, resistant to impact and dust
• Reduced weight and size
• High energy savings
• Backlit LCD display

MIG-MAG

• Operating modes: manual and synergic
• 40 pre-set synergic curves
• Wire speed, welding voltage and current shown on LCD
• Operation selection: 2/4 times, spot
• Adjustments: wire up slope, electronic reactance, wire burnback time, post gas
• ATC (arc control technology)
• Wire feed unit adjustments: manual wire feed, weld seam adjustment, wire feed speed (MAN mode) and welding power (SYN mode)
• Possibility of connecting a semi-automatic type wire feeder unit (CV)

MMA

• Direct and pulse current (MMA PULSE) operation
• Adjustments in MMA: hot start, arc force
• Anti-stick protection
• VRD device
• Welding voltage and current shown on LCD

TIG

• LIFT DC strike
• Welding voltage and current shown on LCD

GOUGING

• Gouging function with gouging voltage and current shown on LCD

Supply and accessories

• Supplied with MIG-MAG torch, cable and earth clamp
• Wire feeder unit with connection cables
• Federal trolley included

Characteristics / technical specifications

• Code: 816916
• Three phase mains voltage: 230 / 400 V
• Mains frequency: 50 / 60 Hz
• Max current DC EN60974-1: 500 @ 60% A
• Current control range DC: 20 - 600 A
• Current 60% DC: 500 A
• Current 100% DC: 400 A
• Max absorbed current: 39 A
• Max DC no-load voltage: 71 V
• Range V out MIG: 9 - 39 V
• Absorbed current at 60%: 39,1 A
• Absorbed power at 60%: 22,5 kW
• Max absorbed power: 22,4 kW
