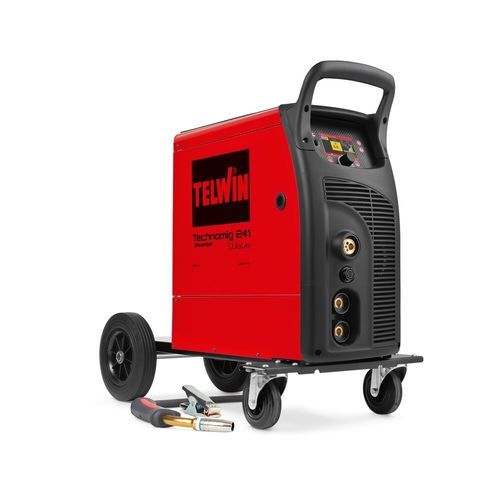

MAG welding machine TECHNOMIG 241 WAVE

MMAMIGTIG

Short description

• Multiprocess inverter welding machine (MIG‑MAG/FLUX/BRAZING/MMA/TIG DC‑Lift) with Wave OS, 220 A and TFT colour display.
• 55 customisable programs; welding operations are traceable and analysable via USB data export.
• Pulse welding programs for aluminium and galvanised sheets (AB Pulse) and ATC mode for low heat input on thin materials.
• Synergic parameter adjustment, compact design and fitted with wheels for easy transport.

Description
MIG‑MAG/FLUX/BRAZING/MMA and TIG DC‑Lift multiprocess inverter designed for industrial welding tasks. The WAVE OS operating system enables customised welding cycles, data traceability through USB export and simplified setup via synergic controls and material‑specific programs. Pulse modes reduce spatter and improve results on critical alloys and coated sheets; ATC reduces heat input for thin panels.

Features

• 55 customisable programs
• Continuous and pulsed operation
• AB Pulse for aluminium and galvanised sheet metal
• ATC mode for low thermal input on thin materials
• User interface with TFT colour screen
• Synergic parameter adjustment for simplified configuration
• Portable: compact chassis with wheels

Package / Supplied accessories
Delivered complete with torch, cable and earth clamp; supplied on wheels.

• FEED ROLL 2R 0,6FE-0,8FE "F" — code 742575
• CABLE 25MMQ 3M - WORK CLAMP - ATLAS 50MMQ — code 713192
• MT25 MIG TORCH 3M — code 742183
• TORCH HOOK — code 645704

Technical specifications

• Code: 816858
• Single phase mains voltage: 230 V
• Mains frequency: 50 / 60 Hz
• Max no load voltage: 96 V
• Current control range DC: 20 - 220 A
• Max current DC (EN60974-1): 200 A @ 20%
• Current at 35% DC: 135 A
• DC current (60%): 100 A
• Max absorbed current: 32 A
• Absorbed current at 60%: 16 A
• Max absorbed power: 5 kW
• Absorbed power at 60%: 2.3 kW
• Efficiency: 84%
• Power factor: 0.7
• Usable electrode diameter in DC: 1.6 - 4 mm
• Steel welding wire diameter: 0.6 - 1.0 mm
• Stainless steel welding wire diameter: 0.8 - 1.0 mm
• Aluminium welding wire diameter: 0.8 - 1.2 mm
• Flux‑cored welding wire diameter: 0.8 - 1.2 mm
• Brazing wire diameter: 0.8 - 1.0 mm
• Protection degree: IP23
• Dimensions: 90 x 47 x 80 cm
• Weight: 39.70 kg
