Pulse welding machine SUPERMIG 505i XD
MIGMAGMMA

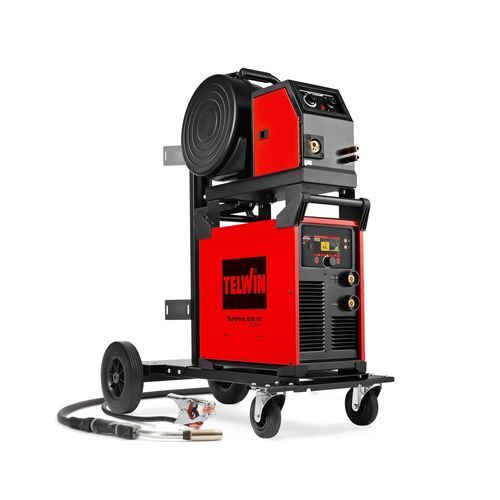

Pulse welding machine - SUPERMIG 505i XD - TELWIN - MIG / MAG / MMA
Pulse welding machine - SUPERMIG 505i XD - TELWIN - MIG / MAG / MMA
Add to favorites
Compare this product
Go to the TELWIN website for more information

Characteristics

Technique
pulse, MIG, MAG, MMA, TIG
Operational mode
manual
Configuration
with trolley
Power supply
400V three-phase
Other characteristics
programmable, compact, heavy-duty, inverter
Power

Min.: 16,600 W
(22.57 hp)

Max.: 16,700 W
(22.706 hp)

Output frequency

Min.: 0.05 kHz

Max.: 0.06 kHz

Description

Overview
  • Multiprocess inverter welding machine (MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift) with external 4-roller wire feeder and trolley. Rated up to 400 A, three-phase 230/400 V supply. XD version designed for high duty cycle and continuous heavy-duty use.


Operating system and modes
  • WAVE OS with EASY and EXPERT modes for tailored workflows. Supports pulsed and double-pulsed welding (PULSE and POP). Synergic parameter control with 18 preset curves and the ability to create, save and export custom programs via USB.


Interface and control
  • TFT graphic display showing wire speed, voltage and welding current. 2/4-stroke and spot selection. Up to 18 advanced adjustable parameters (start/end currents, arc corrections, ramp-up/ramp-down, pre/post gas). ATC function and remote adjustments from the wire feeder unit.


MIG-MAG (functional highlights)
  • Synergic modes with 18 preset curves (expandable with optional packages). Manual and SYN control from the wire feeder; precise display of wire feed speed, voltage and current; selection for 2/4-stroke and spot welding.


MMA
  • Hot start and arc force adjustments, anti-stick protection and VRD safety device. Welding voltage and current visible on the display.


TIG
  • DC Lift ignition with display of welding parameters (voltage and current).


Cooling and construction
  • Tunnel ventilation protects electronic components from dust and contaminants for improved durability in harsh environments. Robust, compact and impact/dust resistant design; low weight for easier on-site transport; protection degree IP23.


Supply and accessories
  • Protections: thermostatic protection, overvoltage (+15%), undervoltage (-25%), overcurrent and motor/generator protections. Delivered complete with MIG-MAG torch, cables and earth clamp, external 4-roller wire feeder, connection cables and trolley.


Technical specifications
  • CODE: 816857
  • Three-phase mains voltage: 230 / 400 V
  • Mains frequency: 50 / 60 Hz
  • Max current DC (EN60974-1): 400 A @ 60%
  • Current control range DC: 20 - 400 A
  • Current 60% DC: 400 A
  • Current 100% DC: 300 A
  • Max absorbed current: 30 A
  • Max DC no-load voltage: 67 V
  • Output voltage range (MIG): 9 - 34 V
  • Absorbed current at 60%: 30.2 A
  • Absorbed power at 60%: 16.7 kW
  • Max absorbed power: 16.6 kW
  • Fuse: 25 A
  • Efficiency: 86 %
  • Electrode diameter (MMA): 1.6 - 8 mm
  • Steel welding wire diameter: 0.6 - 1.6 mm
  • Stainless steel welding wire diameter: 0.8 - 1.6 mm
  • Aluminium welding wire diameter: 0.8 - 1.6 mm
  • Flux-cored welding wire diameter: 0.8 - 1.6 mm
  • Brazing wire diameter: 0.8 - 1.2 mm
  • Wire speed range: 1.5 - 20 m/min
  • Supply cable length: 3 m
  • Standards: EN 60974-1 / -5 / -10
  • Protection degree: IP23
  • Dimensions: 100 x 50 x 110 cm
  • Weight: 74.90 kg
