TIG welding machine INVERPULSE 60.40 WAVE
MAGMIGMMA

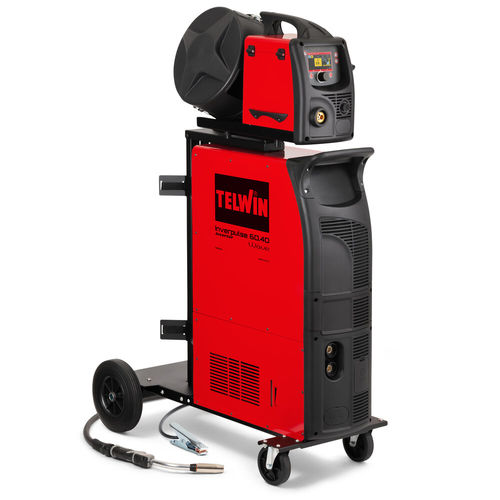

TIG welding machine - INVERPULSE 60.40 WAVE - TELWIN - MAG / MIG / MMA
TIG welding machine - INVERPULSE 60.40 WAVE - TELWIN - MAG / MIG / MMA
TIG welding machine - INVERPULSE 60.40 WAVE - TELWIN - MAG / MIG / MMA - image - 2
TIG welding machine - INVERPULSE 60.40 WAVE - TELWIN - MAG / MIG / MMA - image - 3
TIG welding machine - INVERPULSE 60.40 WAVE - TELWIN - MAG / MIG / MMA - image - 4
TIG welding machine - INVERPULSE 60.40 WAVE - TELWIN - MAG / MIG / MMA - image - 5
TIG welding machine - INVERPULSE 60.40 WAVE - TELWIN - MAG / MIG / MMA - image - 6
Add to favorites
Compare this product
Go to the TELWIN website for more information

Characteristics

Technique
TIG, MAG, MIG, MMA
Operational mode
manual
Applications
galvanized steel, for carbon steel, for aluminum, for stainless steel
Power supply
400V three-phase
Other characteristics
programmable, with data logging, inverter, CE
Power

Min.: 0 W
(0 hp)

Max.: 346,410 W
(470.986 hp)

Description

Short description
  • Multiprocess inverter welding machine for continuous and pulse operation (MIG‑MAG / FLUX / BRAZING / MMA / TIG DC‑Lift). Maximum welding current 500 A. 3‑phase 230/400 V power supply. External professional 4‑roller wire feeder (support up to 15 kg / 300 mm spool).


Key features
  • Wave OS with EASY and EXPERT modes for a customisable work environment.
  • PULSE and POP double‑pulse capability; 130 preconfigured synergic curves (MIG‑MAG).
  • Advanced arc modes: ROOT‑MIG, ATC (Adaptive TIG Control), DEEP MIG.
  • TIG LIFT ignition and VRD (Voltage Reduction Device).
  • Data saving via USB and optional cloud platform; programmable and storable welding recipes.
  • Support for air‑ and liquid‑cooled torches; remote parameter adjustment.
  • CE and EAC certifications; warranty icon: 5 years (as indicated on product page).


Interface and traceability
  • TFT colour display with graphical Wave interface for intuitive navigation and parameter setting.
  • Create, save, recall and export customised welding programs; export data via USB; optional cloud analytics and traceability.
  • Display of wire speed, voltage and welding current; adjustable modes (2/4‑stroke, Bi‑Level, spot).


Applications and materials
  • Suitable for welding and brazing of steel, stainless steel, aluminium, galvanized and zinc‑coated sheets.
  • Pulse and double‑pulse modes for improved control on thin materials and specialised applications (root passes, fillet, lap joints).
  • Designed for industrial continuous use with stable wire feeding and high duty‑cycle capability.


Technical specifications
  • Model: INVERPULSE 60.40 WAVE
  • Processes: MIG‑MAG / FLUX / BRAZING / MMA / TIG DC‑Lift
  • Max welding current: 500 A
  • Wire feeder: External 4‑roller professional unit; supports spools up to 300 mm / 15 kg
  • Power supply: 3‑phase 230/400 V
  • Operating modes: continuous, pulse; PULSE and POP (double pulse)
  • Operating system: Wave OS (EASY / EXPERT)
  • User interface: TFT colour display
  • Advanced arcs: ROOT‑MIG, ATC, DEEP MIG; 130 synergic curves
  • Data: USB export; optional cloud storage and analysis
  • Safety/features: TIG LIFT, VRD; CE and EAC marked
