MIG welding machine SUPERMIG 500i XD PACK
spotMAGMMA

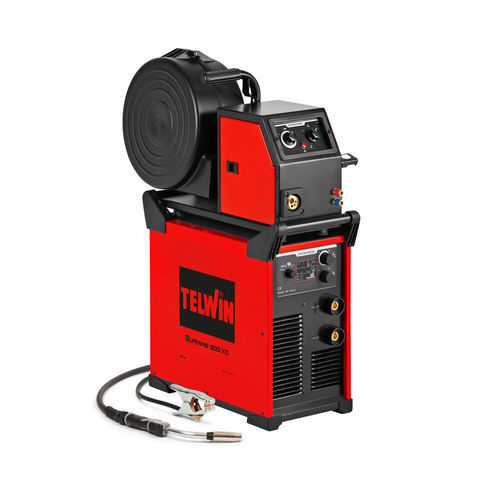

MIG welding machine - SUPERMIG 500i XD PACK - TELWIN - spot / MAG / MMA
MIG welding machine - SUPERMIG 500i XD PACK - TELWIN - spot / MAG / MMA
MIG welding machine - SUPERMIG 500i XD PACK - TELWIN - spot / MAG / MMA - image - 2
MIG welding machine - SUPERMIG 500i XD PACK - TELWIN - spot / MAG / MMA - image - 3
Add to favorites
Compare this product
Go to the TELWIN website for more information

Characteristics

Technique
MIG, spot, MAG, MMA, TIG
Operational mode
manual
Applications
for steel, for stainless steel, for aluminum
Power supply
400V three-phase
Other characteristics
compact, high-power, three-phase, inverter
Power

Min.: 0 W
(0 hp)

Max.: 10,000,000 W
(13,596.212 hp)

Output frequency

Min.: 0.05 kHz

Max.: 0.06 kHz

Description

Product overview
  • Multiprocess inverter welding machine (MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift and GOUGING) with external 4-roll wire feeder, 400 A. Three-phase power supply 230/400 V. XD = high duty cycle for continuous and heavy applications.
  • OneTouch synergic adjustment with 40 preset synergic curves. Backlit LCD shows wire speed, welding voltage and current. 2/4 times and spot selection.
  • MMA: direct and pulse current (MMA PULSE) operation with VRD. TIG DC-Lift and gouging function available.
  • Dedicated ventilation tunnel protects electronic components from dirt and dust. Robust, impact- and dust-resistant construction; compact footprint and reduced weight.


Features
  • Multiprocess capability: MIG-MAG, FLUX, BRAZING, MMA (incl. MMA PULSE), TIG DC-Lift, GOUGING
  • External 4-roll feeder (portable) with 4 m cable bundle (direct connection)
  • OneTouch synergic adjustment — 40 preset curves
  • Backlit LCD: wire feed speed, welding voltage, current
  • Operation modes: manual and synergic (MIG-MAG); 2/4 times, spot
  • Adjustments: wire up ramp, electronic reactance, burn-back time, post gas
  • ATC (advanced thin control) for welding on thin materials
  • MMA: direct and pulse (MMA PULSE); hot start; arc force; anti-stick protection; VRD
  • TIG: LIFT DC strike
  • Gouging with carbon electrodes
  • Protections: thermostatic, overvoltage (+15%), undervoltage (-25%), overcurrent
  • Supplied with MIG-MAG torch, cable and earth clamp, wire feed unit with connection cables


MIG-MAG details
  • Modes: manual and synergic
  • 40 preset synergic curves
  • Wire speed, welding voltage and current displayed on LCD
  • Operation selection: 2/4 times, spot
  • Wire feed unit adjustments: manual feed (MAN), seam adjustment, feed speed and welding power (SYN)
  • Possible connection of semi-automatic (CV) feeder


MMA details
  • Direct and pulse current (MMA PULSE) operation
  • Suitable for cellulose, aluminium-coated (E4043), rutile, basic, stainless and cast iron electrodes
  • Adjustments: hot start, arc force
  • Anti-stick protection and VRD device


TIG details
  • LIFT DC arc start
  • Welding voltage and current displayed on LCD


Gouging
  • Gouging function with corresponding voltage and current shown on LCD; use with carbon electrodes


Technical specifications
  • Code: 816910
  • Designation: SUPERMIG 500i XD PACK
  • Three-phase mains voltage: 230 / 400 V
  • Mains frequency: 50 / 60 Hz
  • Max DC current (EN60974-1): 400 A @ 60%
  • DC current range: 20 - 400 A
  • External 4-roll wire feeder; feeder cable length: 4 m (direct connection)
  • 40 preset synergic curves; OneTouch synergic adjustment
  • Backlit LCD display (wire speed, voltage, current)
  • Protections: thermostatic, overvoltage, undervoltage, overcurrent
