MIG welding machine SUPERMIG 505i XD PULSE PACK
MMAMAGpulse

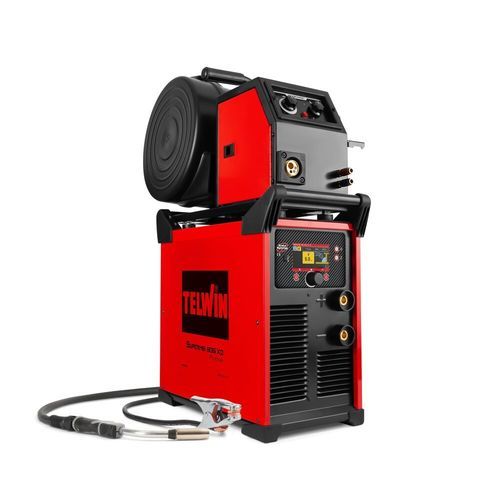

MIG welding machine - SUPERMIG 505i XD PULSE PACK - TELWIN - MMA / MAG / pulse
MIG welding machine - SUPERMIG 505i XD PULSE PACK - TELWIN - MMA / MAG / pulse
Add to favorites
Compare this product
Go to the TELWIN website for more information

Characteristics

Technique
MIG, MMA, MAG, pulse, TIG
Operational mode
manual
Applications
for aluminum, for carbon steel, for stainless steel
Power supply
400V three-phase
Other characteristics
compact, programmable, with data logging, inverter, high-power
Power

Max.: 16,700 W
(22.706 hp)

Min.: 16,700 W
(22.706 hp)

Description

Short description
  • Multi-process inverter welding machine (MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift) with external 4-roller wire feeder, 400 A nominal. Three-phase 230/400 V supply. XD version with high duty cycle for continuous and heavy-duty use.
  • WAVE OS with EASY and EXPERT modes; pulsed (PULSE) and double-pulsed (POP) operation. Synergic adjustment with 18 preset curves and creation, saving and export of custom programs via USB.
  • TFT graphic display for wire speed, voltage and current; 2/4-stroke and spot selection; up to 18 advanced adjustable welding parameters. ATC function and controls available from the wire feeder.
  • MMA and TIG functions with hot start, arc force, anti-stick protection, VRD and DC-Lift ignition for TIG.
  • Tunnel ventilation protects electronics from dust for improved reliability. Robust, compact and transportable 4-roller drive unit.


System and modes
  • WAVE OS enables EASY/EXPERT environments and synergic parameter management for repeatable results. Data traceability and analysis via USB.
  • PULSE and POP modes for working on steel, stainless steel and aluminium; 18 preset synergic curves expandable with optional packs.
  • Create, store and export multiple customised programs to adapt to specific production needs.


Interface and controls
  • TFT Wave graphic display showing wire speed, output voltage and welding current.
  • Selection 2/4-stroke and spot, manual (MAN) and synergic (SYN) control from the feeder, wire speed 1.5–20 m/min.
  • Up to 18 advanced parameters: start/end currents, arc corrections, ramp-up/ramp-down, pre/post gas, ATC.


MMA and TIG
  • MMA: hot start, arc force, anti-stick protection and VRD; voltage and current displayed on screen.
  • TIG: DC-Lift ignition with parameter display; suitable for DC TIG applications.


Protection and reliability
  • Tunnel ventilation to protect electronic components from dust and dirt.
  • Thermostatic protection, overvoltage (+15%), undervoltage (-25%), overcurrent and motor/generator protections.
  • Robust, impact- and dust-resistant construction with compact dimensions for easier transport.


Package contents
  • Delivered complete with MIG-MAG torch, cable and earth clamp, external 4-roller wire feeder and connection cables.


Technical specifications
  • Code: 816852
  • Supply: three-phase 230 / 400 V, 50 / 60 Hz
  • Max DC current (EN 60974-1): 400 A @ 60%
  • Current control range DC: 20 – 400 A (100% DC = 300 A)
  • Max DC open-circuit voltage: 67 V
  • MIG output voltage range: 9 – 34 V
  • Wire diameter (steel): 0.6 – 1.6 mm; stainless steel/aluminium/flux: 0.8 – 1.6 mm; brazing wire: 0.8 – 1.2 mm
  • Wire speed (drive): 1.5 – 20 m/min
  • Rated efficiency: 86%
  • Max absorbed current: ~30 A; absorbed power at 60%: 16.7 kW
  • Fuse: 25 A
  • Standards: EN 60974-1 / -5 / -10
  • Protection degree: IP23
  • Dimensions: 54.6 x 27.4 x 86 cm; Weight: 51.69 kg
