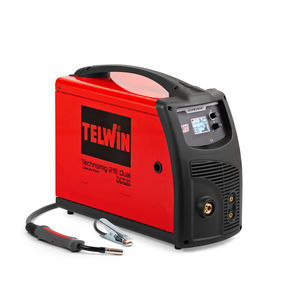

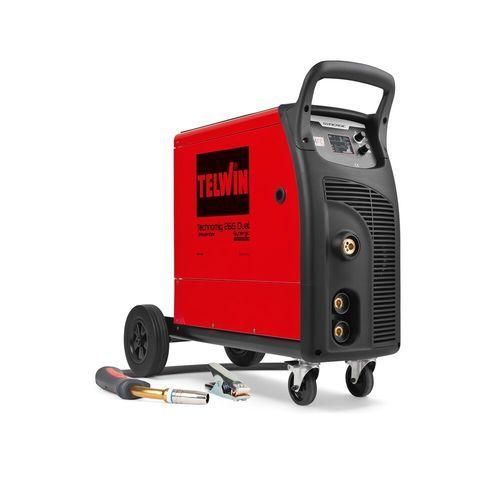

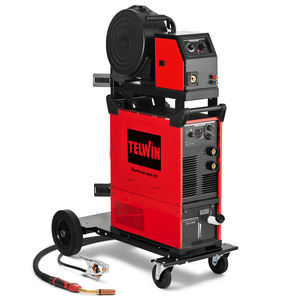

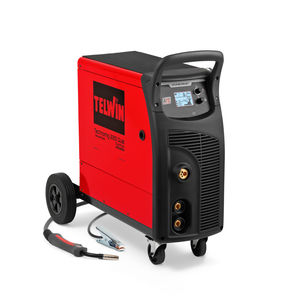

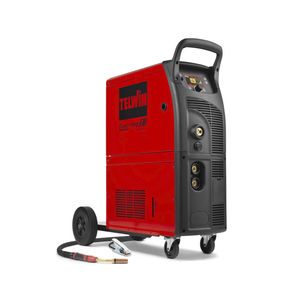

MMA welding machine TECHNOMIG 265 DUAL SYNERGIC

TIGMAGMIG

Overview
Microprocessor-controlled multiprocess inverter welding machine suitable for MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift. Designed for maintenance, installation and bodyshop work; capable of welding steel, stainless steel, aluminium and braze-welding galvanized sheet. ONE TOUCH LCD SYNERGY provides quick synergic setup. Supplied on wheels for easy transport and onsite interventions.

Main benefits

• Multiprocess capability: MIG-MAG / FLUX / BRAZING / MMA / TIG DC-Lift, up to 250 A with LCD display.
• OneTouch synergic adjustment (ONE TOUCH LCD SYNERGY) with 29 pre-set synergic curves for fast configuration.
• Intelligent automatic arc control with manual arc length adjustment option for tailoring bead shape.
• ATC (Advanced Thermal Control) to facilitate welding on thin materials.
• MMA functions: arc force, hot start and anti-stick; VRD device included.
• Polarity reversal for NO GAS/Flux and MIG-MAG/BRAZING applications.
• Lightweight, compact design on wheels for portability.

Features

• 29 pre-programmed synergic curves.
• Wire feed regulation: up-slope, electronic reactance, burn-back time and post gas.
• Selection of 2/4 times and spot welding modes.
• Protections: thermostatic, overvoltage, undervoltage, overcurrent, motorgenerator tolerance (+/-15%).

Supplied accessories (examples)

• Feed roll 2R 0,6FE-0,8FE (see product page for part number).
• MT25 MIG torch 3 m.
• Cable TW05V-A 1X025 L=03,00M ATLAS 50MMQ.
• Toledo 250 work clamp 250 A.

Technical specifications

• Code: 816819
• Rated capacity: 250 A
• Single-phase mains voltage: 230 V
• Mains frequency: 50 / 60 Hz
• Max no-load voltage: 60 V
• Current control range DC: 20 - 250 A
• Max current DC (EN60974-1): 220 A @ 20% duty cycle
• Current 35% DC: 170 A
• DC current (continuous spec): 130 A
• Max absorbed current: 39 A
• Absorbed current at 60%: 22 A
• Max absorbed power: 6.3 kW
• Absorbed power at 60%: 3.3 kW
• Efficiency: 87%
• Power factor: 0.7
• Usable electrode diameter in DC: 1.6 - 4 mm
• Steel welding wire diameter: 0.6 - 1.2 mm
• Stainless steel welding wire diameter: 0.8 - 1.0 mm
• Aluminium welding wire diameter: 0.8 - 1.0 mm
• Flux-cored wire diameter: 0.8 - 1.2 mm
• Brazing wire diameter: 0.8 - 1.0 mm
• Protection degree: IP23
• Dimensions: 79.5 x 37.5 x 73 cm
• Weight: 29.8 kg
• Max spool: 15 kg (Ø 200 / 300 mm)
