MMA welding machine INVERPULSE 60.30 WAVE AQUATIGMAGMIG
Add to favorites
Compare this product
Characteristics
- Technique
- MIG, TIG, MAG, MMA
- Operational mode
- manual
- Applications
- for steel, for stainless steel, for aluminum alloys, galvanized steel
- Power supply
- 400V three-phase
- Other characteristics
- CE, water-cooled, inverter, with data logging
Description
Overview
Wire feeder (professional 4‑rolls)
Processes & MIG‑MAG features
MMA
TIG
Operational & protection features
Supply / Included items
Technical specifications

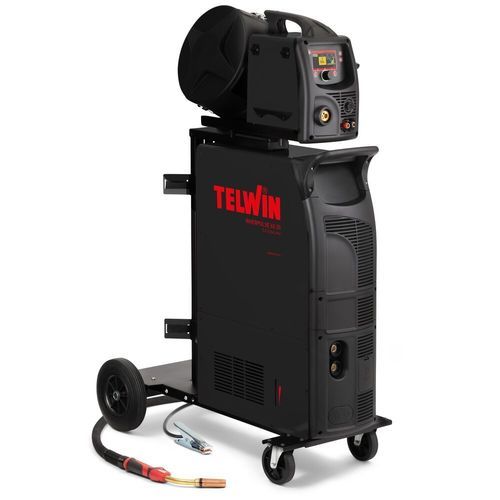

- Multiprocess inverter welding machine for continuous and pulse operation (MIG-MAG / FLUX / BRAZING / MMA / TIG DC‑Lift). Maximum welding current 400 A. 3‑phase 230/400 V. Supplied with AQUA water‑cooling unit and external professional 4‑roll wire feeder.
Wire feeder (professional 4‑rolls)
- External 4‑roll wire feeder designed for precise, constant feeding in continuous industrial use. Spool support up to 300 mm and spools up to 15 kg.
- Internal lighting, IP protection, interchangeable cable harness and compatibility with air/liquid torches.
- Remote adjustment of welding parameters and support for standard industrial spools.
Processes & MIG‑MAG features
- Wave OS with EASY and EXPERT modes for a customisable work environment.
- 130 pre‑set synergic curves and advanced arc modes (ROOT‑MIG, ATC, DEEP MIG).
- Pulse and double pulse modes (PULSE, POP) suitable for steel, stainless steel, aluminium, galvanised and zinc‑coated sheets.
- Display of wire speed, voltage and welding current; selection 2/4‑stroke, Bi‑Level, spot and material thickness units (in/mm).
- Up to 18 adjustable advanced welding parameters (start/end currents, arc corrections, up/down slope, pre/post gas).
MMA
- MMA functions: Hot Start, Arc‑Force; anti‑stick protection; VRD device included.
TIG
- LIFT DC ignition with display of welding voltage and current; TIG LIFT supported for DC applications.
Operational & protection features
- Thermostatic protection, overvoltage (+15%) and undervoltage (−25%) protection, overcurrent protection and motor‑generator compatibility.
- Compact, industrial design with impact and dust resistance. High energy efficiency and reduced consumption.
Supply / Included items
- Supplied complete with MIG‑MAG torch, cables and earth clamp, external 4‑roll wire feeder, connection cables and AQUA water‑cooling unit.
Technical specifications
- Model: INVERPULSE 60.30 WAVE AQUA (Code: 816976)
- Processes: MIG‑MAG, FLUX, BRAZING, MMA, TIG DC‑Lift
- Max welding current: 400 A
- Power supply: 3‑phase 230/400 V
- Wire feeder: External professional 4‑rolls; spool support up to 300 mm; spool capacity up to 15 kg
- Cooling: AQUA water‑cooling unit
- Operating system: Wave OS (EASY and EXPERT)
- Display: TFT colour screen (Wave)
- Pre‑set synergic curves: 130
- Adjustable parameters: Up to 18 advanced settings
- Traceability: Data storage via USB; optional cloud platform
- Additional features: VRD, remote control compatibility, air/liquid torch compatibility
- Certifications indicated: CE, EAC
