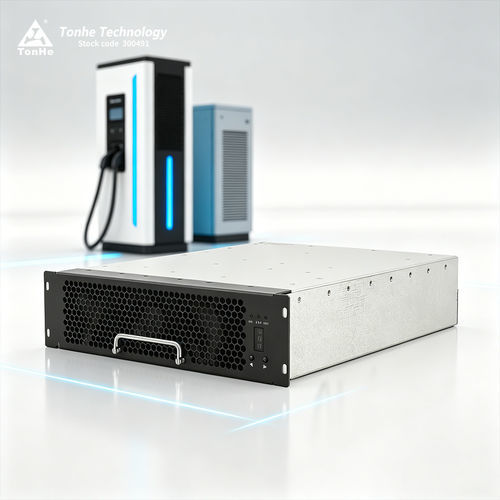

Full SiC power module TH40F10030C7E-WT

ACDC

TH40F10030C7E-WT is a high-efficiency, high-power-density DC charging module developed by Tonhe Technology for EV DC chargers. It can output up to 1000V, and provides a constant power of 40kW within the ranges of 300-500VDC and 600-1000VDC. The interface and size of this module are the same as our 30kW model, making it convenient for users to upgrade and iterate. The module adopts intelligent air cooling and heat dissipation mode, and supports normal mode and silent mode. The charging module CAN realize the parameter setting of the charging module and control the working state of the charging module through CAN bus and main monitoring communication. Product Advantages Wide output constant power range: 300-500VDC and 600-1000VDC Ultra-low standby power consumption: <10W Ultra-low total harmonic distortion: ≤5% Ultra-wide operating temperature: -40℃-75℃ High Conversion Efficiency: peak efficiency ≥ 96%
