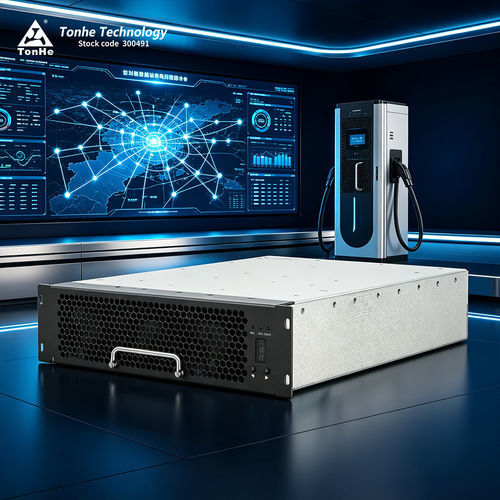

Charging electric vehicle power module THWT40F10030C9E

ACDC

Product Brief
THWT40F10030C9E is a 40 kW DC charging module designed for EV charging applications in industrial and commercial environments. The module complies with IEC61851 and IEC60664 standards and can meet EMC Class B requirements.

Product Advantages

• Wide output constant power range: 300–1000 VDC
• Ultra-low standby power: <10 W
• Low total harmonic distortion: ≤5%
• Wide operating temperature: -40 °C to +75 °C
• High peak conversion efficiency: ≥97.2%
• Low acoustic noise: 60 dB at full load (room temperature)

Parametric Performance
Model: THWT40F10030C9E
AC input: Rated 400 VAC, 3W+PE (operating 340–460 VAC); 50/60 Hz ±10%; PF ≥0.99; overvoltage protection 490 ±6 VAC; undervoltage protection 270 ±6 VAC
DC output: Rated power 40 kW; voltage range 200–1000 VDC; current range 8–134 A; constant power ranges 300–500 VDC and 500–1000 VDC; peak efficiency ≥97.2%; soft start ≤3 s; short-circuit self-rollback protection; voltage regulation ≤±0.5%; current regulation ≤±1%; current sharing imbalance ≤±5%; THD ≤5%
Environment: Operating temperature -40 °C to +70 °C; humidity ≤95% RH (no condensation); altitude ≤2000 m (derating above)
Mechanical: Dimensions (without handle) 437.5 × 300 × 84 mm (L × W × H); weight ≤18 kg; cooling: fan cooling; MTBF 500,000 h
Communication & control: CAN (125 kb/s, 5 V); digital screen and buttons for address/setting; glue filling supported

Production & Test Capabilities
Tonhe Technology holds ISO9001 and IATF16949 certifications. Manufacturing includes automated SMT lines, solder paste inspection, wave soldering, automatic coating, aging lines and full assembly processes. Annual capacity exceeds 500,000 modules.

Certificates & Packaging
CE and other certificates available. Packaging and shipping follow company production flow (packaging images available on request).

FAQ (selected)

• Communication protocol: CAN, 125 kb/s, 5 V.
• Glue filling: supported for all series.
• Installation: horizontal, side-standing or upside-down (upside-down requires front panel without handle).
• Delivery time: typically ~7 days for ≥10 pcs; larger/custom orders up to ~35 days.
• Payment: standard TT in advance; alternatives negotiable for strategic cooperation.
• Customization: OEM/ODM available (nameplate, logo, model, color, shape).
• Warranty: standard 12 months from shipment receipt.
• After-sales: online and on-site options; 24 h response for projects depending on contract.
• Certifications: ISO9001, IATF16949, CE, TUV and others.

Technical Specifications

• Model: THWT40F10030C9E
• Brand: Tonhe Technology
• Rated output power: 40 kW
• Output voltage range: 200–1000 VDC
• Output current range: 8–134 A
• Constant power ranges: 300–500 VDC and 500–1000 VDC
• Peak conversion efficiency: ≥97.2%
• Standby power consumption: <10 W
• Total harmonic distortion (THD): ≤5%
• Soft start time: ≤3 s
• Short circuit protection: self-rollback
• Voltage regulation accuracy: ≤±0.5%
• Current regulation accuracy: ≤±1%
• Current sharing imbalance: ≤±5%
• Cooling: fan cooling
• Communication: CAN (125 kb/s, 5 V)
• AC input rated voltage: 400 VAC, 3W+PE (340–460 VAC)
• Input frequency: 50/60 Hz ±10%
• Input power factor: ≥0.99
• Operating temperature: -40 °C to +70 °C
• Relative humidity: ≤95% RH (no condensation)
• Altitude: ≤2000 m (derating above)
• Dimensions (without handle): 437.5 × 300 × 84 mm
• Weight: ≤18 kg
• MTBF: 500,000 hours
