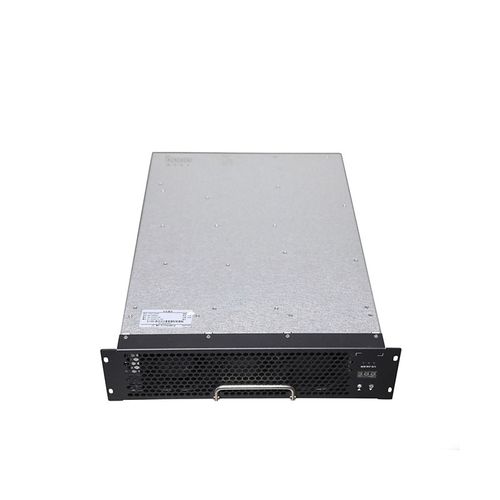

Full SiC power module THWT40F10030C9EUR

ACDC

Product Introduction
THWT40F10030C9EUR is a high-efficiency, high-power-density DC charging module developed by Tonhe Technology for the American market, compliant with UL2202 standards.

Product Advantages

• Wide output constant power range: 300–1000 VDC
• Ultra-low standby power consumption: <10 W
• Ultra-low total harmonic distortion: ≤5%
• Ultra-wide operating temperature: -40°C to +75°C
• High conversion efficiency: peak efficiency ≥97.2%
• Ultra-low noise level: 60 dB at full load (room temperature)

Parametric Performance
Model No.: THWT40F10030C9EUR

• AC input:
  • Input voltage: Rated 480 VAC, 3W+PE; operating range 286–533 VAC
  • Input frequency: 60 Hz ±10%
  • Input power factor: ≥0.99
  • Input overvoltage protection: 289±3 VAC
  • Input undervoltage protection: 536±3 VAC
• DC output:
  • Rated output power: 40 kW
  • Output voltage range: 200–1000 VDC
  • Output current range: 8–134 A
  • Output constant power range: 300–1000 VDC
  • Peak efficiency: ≥97.2%
  • Soft start time: ≤3 s
  • Short-circuit protection: self-rollback protection
  • Voltage regulation accuracy: ≤±0.5%
  • THD: ≤5%
  • Current regulation accuracy: ≤±1%
  • Current sharing imbalance: ≤±5%

Operating Environment

• Working temperature: -40°C to +70°C
• Relative humidity: ≤95% RH, non-condensing
• Altitude: ≤2000 m (derating above 2000 m)

Product Features

• Cooling method: fan cooling
• Standby power consumption: <10 W
• Communication protocol: CAN (baud rate 125 kbs, voltage level 5 V)
• Address setting: digital screen display, button operation
• Module dimensions (without handle): 437.5 × 300 × 84 mm (L × W × H)
• Weight: ≤18 kg
• MTBF: 500,000 hours

Production Center
Tonhe Technology holds ISO9001 and IATF16949 quality management certifications. Manufacturing processes include automatic SMT lines, automatic solder paste printing and inspection, wave soldering, automatic conformal coating lines, aging test lines and other supporting facilities. Annual production capacity exceeds 500,000 charging modules after more than 50 production steps.

Test Center
Tonhe Technology operates a CNAS- and DiLAC-certified EMC laboratory. Test facilities include a semi-anechoic 3 m EMC chamber, Chroma electronic loads, AC sources, Yokogawa WT1800 power analyzers, Fluke multimeters, temperature and humidity chambers, enabling full charger-system testing and transient immunity tests.

Certificate Showcase
Certificates and compliance include UL2202 and other industry certifications relevant to exported charging modules.

Packaging & Shipping
Packaging and shipping options cover small orders (express courier) and large shipments (sea or air containers). FOB Shijiazhuang is commonly used by customers.

FAQ (selected)

• Communication protocol: CAN; CAN baud rate 125 kbs; CAN voltage level 5 V.
• Gel filling: all series modules support gel filling.
• Installation: module can be installed horizontally, on its side, or upside down.
• Delivery time: typical lead times apply for production orders; samples may be available from stock. Minimum quantities and lead times vary by order.
• Payment terms: standard manufacturer terms; negotiable for long-term cooperation.
• Warranty: standard 12 months from receipt of shipment.
• After-sales service: online and on-site service available per contract; 24-hour response scheme for projects.

Technical Specifications

• Model: THWT40F10030C9EUR
• Brand: Tonhe Technology
• Rated output power: 40 kW
• Output voltage range: 200–1000 VDC
• Output current range: 8–134 A
• Output constant power range: 300–1000 VDC
• Peak efficiency: ≥97.2%
• Standby power consumption: <10 W
• THD: ≤5%
• Operating temperature: -40°C to +70°C
• Cooling: fan cooling
• Dimensions (L×W×H): 437.5 × 300 × 84 mm (without handle)
• Weight: ≤18 kg
• MTBF: 500,000 hours
