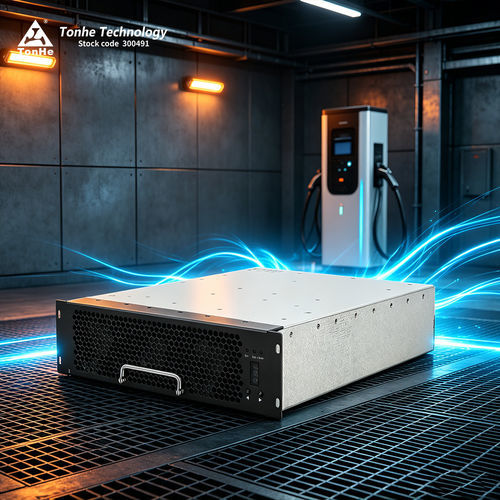

Charging electric vehicle power module TH40F10030C7E-WT

DC

Product Brief

• TH40F10030C7E-WT is a 40 kW DC charging module by Tonhe designed for EV DC chargers and charging piles.
• Output voltage up to 1000 VDC; constant 40 kW in 300–500 VDC and 600–1000 VDC ranges.
• Form factor compatible with the 30 kW module for simplified upgrades and iterations.

Product Introduction
The TH40F10030C7E-WT is an intelligent, high‑power‑density DC charging module developed for commercial EV charging systems. It supports output up to 1000 VDC and delivers a constant 40 kW within the specified voltage windows. The module uses intelligent air cooling with selectable normal and silent modes and provides local display/key operation plus remote parameter setting and status control via CAN bus.

Product Advantages

• Two constant‑power output windows: 300–500 VDC and 600–1000 VDC for 40 kW operation.
• Very low standby consumption: <10 W.
• Low total harmonic distortion: THD ≤5%.
• Wide ambient temperature range: -40℃ to +75℃.
• High conversion efficiency: peak ≥96%.

Parametric Performance
AC input: rated 380 VAC, three‑phase; operating range 270–490 VAC. Frequency 50/60 Hz ±10%. Input power factor ≥0.99. Overvoltage protection 490±10 VAC; undervoltage protection 270±10 VAC.

DC output: rated output power 40 kW. Output voltage range 50–1000 VDC. Output current range 0.5–134 A. Constant 40 kW when output voltage is 300–500 VDC or 600–1000 VDC. Peak conversion efficiency ≥96%. Soft start time 3–8 s. Short‑circuit: self‑rollback protection. Voltage regulation accuracy ≤±0.5%. Current regulation accuracy ≤±1%. Current sharing imbalance ≤±5%. Total harmonic distortion (THD) ≤5%.

Operating Environment
Working temperature: -40℃ to +75℃. Relative humidity ≤95% (no condensation). Altitude ≤2000 m (derating above 2000 m).

Product Features

• Cooling: fan (intelligent air cooling with normal/silent modes).
• Standby power <10 W.
• Communication: CAN bus (support for CAN control and parameter setting; typical CAN baud rate 125 kbps).
• Local operation: digital display and key input for address setting and status viewing.
• Module dimensions (without handle): 437.5 × 300 × 84 mm (L×W×H). Weight ≤16 kg.
• MTBF: 500,000 hours. Standard warranty: 12 months from shipment receipt.

Technical specifications

• Model: TH40F10030C7E-WT
• Brand: Tonhe
• Rated DC output power: 40 kW
• DC output voltage range: 50–1000 VDC
• DC output current range: 0.5–134 A
• Constant power ranges: 300–500 VDC and 600–1000 VDC (40 kW)
• Peak conversion efficiency: ≥96%
• Standby power consumption: <10 W
• Total harmonic distortion (THD): ≤5%
• Voltage regulation accuracy: ≤±0.5%
• Current regulation accuracy: ≤±1%
• Current sharing imbalance: ≤±5%
• Soft start time: 3–8 s
• Short‑circuit protection: self‑rollback protection
• Cooling: fan (intelligent air cooling, normal/silent modes)
• Communication: CAN bus (typical baud rate 125 kbps)
• Dimensions (L×W×H without handle): 437.5 × 300 × 84 mm
• Weight: ≤16 kg
• Operating temperature: -40℃ to +75℃
• Relative humidity: ≤95% (no condensation)
• Altitude: ≤2000 m (derating above 2000 m)
• MTBF: 500,000 hours
• Warranty: 12 months from receipt of shipment
