Full SiC power module TH40F10030C8E-WT

ACDC

Product Brief

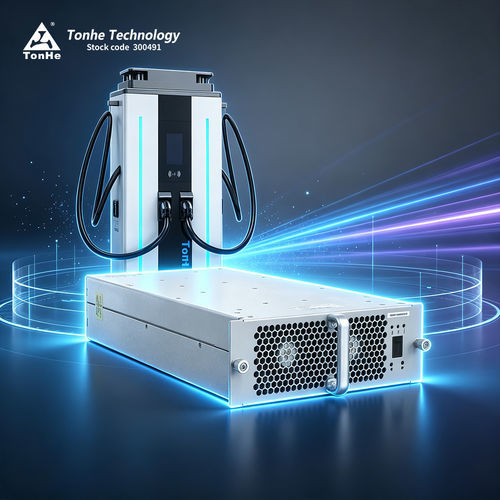

TH40F10030C8E-WT is a high-efficiency, high-power-density power module from Tonhe Technology designed for EV charging piles. It accepts 270–490 VAC three-phase four-wire input (3φ + PE) and delivers up to 40 kW, with default constant-power output ranges of 300–500 VDC and 600–1000 VDC.

Product Introduction
Designed specifically for EV charging stations, the TH40F10030C8E-WT offers wide AC input compatibility, flexible DC output ranges and a compact form factor for integration into charging systems and cabinets.

Product Advantages

• Compliant with State Grid three-unified size for charger modules.
• Wide constant-power output options: 300–500 VDC and 600–1000 VDC to suit different battery systems.
• Ultra-low standby reactive power: ≤10 Var, reducing grid impact.
• Low total harmonic distortion: ≤5% for improved power quality.

Parametric Performance
Model: TH40F10030C8E-WT
AC input: Rated 380 VAC, 3φ + PE; operating range 270–490 VAC
Input frequency: 50/60 Hz ±10%
Input power factor: ≥0.99
Input overvoltage protection: 487±10 VAC
Input undervoltage protection: 270±10 VAC

DC output: Rated output power 40 kW
Output voltage range: 50–1000 VDC
Output current range: 0.5–134 A
Constant power ranges: 300–500 VDC; 600–1000 VDC
Peak efficiency: ≥96%
Soft start time: 3–8 s
Short-circuit protection: Self-rollback protection
Voltage regulation accuracy: ≤±0.5%
THD: ≤5%
Current regulation accuracy: ≤±1%
Current sharing imbalance: ≤±5%

Product Features

• Cooling: Fan cooling for controlled thermal performance.
• Standby power consumption: ≤10 W.
• Communication: CAN (125 kbps, 5 V CAN level).
• Address and operation: Digital screen display with button operation.
• Dimensions (without handle): 460 × 218 × 84 mm (L × W × H).
• Weight: ≤15 kg.
• MTBF: 500,000 hours.

Production Center
Tonhe Technology is certified to ISO9001 and IATF16949. Manufacturing lines include automated SMT, solder paste printing and inspection, wave soldering, conformal coating and aging test lines. Annual output exceeds 500,000 charging modules after integrated production processes.

Test Center
Tonhe Technology maintains a CNAS- and DiLAC-certified EMC laboratory with a semi-anechoic 3 m chamber, Chroma electronic loads, AC sources, Yokogawa power analyzers, Fluke instruments and environmental chambers. Facilities support surge, EFT, DIPs and transient immunity testing.

Certificate Showcase
Company and product certifications include CE and TUV; quality systems include ISO9001 and IATF16949.

FAQ (selected)

• Communication protocol: CAN; baud rate 125 kbps; CAN level 5 V.
• Glue filling: All series support potting/glue filling.
• Installation: Can be mounted horizontally, on side or upside down. Front panel without handle available for inverted mounting.
• Delivery lead time: Typical production lead times depend on quantity; samples may be in stock. Lead times vary for large or customized orders.
• Payment terms: Standard 100% TT in advance; negotiable for long-term cooperation (e.g. 50/50 or 30/70 splits).
• Warranty: Standard 12 months from receipt.
• After-sales service: Online and on-site support per contract; 24-hour response schemes for projects.
• Markets: Charging modules and EV chargers exported to multiple countries worldwide.

Specifications

• Model: TH40F10030C8E-WT
• Brand: Tonhe Technology
• AC input rated voltage: 380 VAC (operating 270–490 VAC)
• Input frequency: 50/60 Hz ±10%
• Input power factor: ≥0.99
• DC rated output power: 40 kW
• Output voltage range: 50–1000 VDC
• Output current range: 0.5–134 A
• Constant power ranges: 300–500 VDC; 600–1000 VDC
• Peak efficiency: ≥96%
• Soft start time: 3–8 s
• Protections: Short-circuit self-rollback protection
• Voltage regulation accuracy: ≤±0.5%
• THD: ≤5%
• Current regulation accuracy: ≤±1%
• Current sharing imbalance: ≤±5%
• Working temperature: -30°C to +70°C
• Relative humidity: 5%–95% RH (no condensation)
• Altitude: ≤2000 m (derating above 2000 m)
• Cooling: Fan cooling
• Standby power consumption: ≤10 W
• Communication: CAN (125 kbps, 5 V)
• Address/operation: Digital screen, button operation
• Dimensions (without handle): 460 × 218 × 84 mm (L × W × H)
• Weight: ≤15 kg
• MTBF: 500,000 hours
