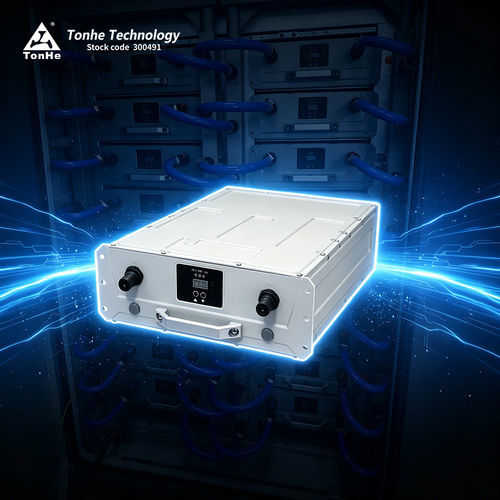

Full SiC power module TH40F10030C8L-WT

ACDC

Product introduction
TH40F10030C8L-WT is a liquid-cooled power module developed by Tonhe for EV charging stations. It delivers a rated output power of 40 kW with a wide DC output range and supports CAN-bus communication with the charger monitoring/control unit for parameter setting, telemetry and state control.

Product advantages

• Running noise: 0 dB
• Ingress protection: IP65
• Wide operating temperature: -40℃ to +75℃
• Service life > 10 years, maintenance-free process
• High conversion efficiency: peak efficiency ≥ 97%

Parametric performance (summary)
Model No.: TH40F10030C8L-WT

AC input
Rated voltage: 400 VAC, three-phase + PE; operating range: 270–490 VAC
Input frequency: 50/60 Hz ±10%
Input power factor: ≥0.99
Overvoltage protection: 490±10 VAC
Undervoltage protection: 270±10 VAC
THD: ≤±5%

DC output
Rated output power: 40 kW
Output voltage range: 300–1000 VDC
Output current range: 0.5–133.3 A
Constant power range: 300–1000 VDC
Peak efficiency: ≥97%
Soft-start time: ≤3 s
Voltage regulation accuracy: ≤±0.5%
Short-circuit protection: self-rollback protection
Current regulation accuracy: ≤±1%
Current sharing imbalance: ≤±5%

Operating environment
Operating temperature: -40℃ to +75℃
Relative humidity: ≤95% (non-condensing)
Altitude: ≤2000 m (derating above 2000 m)

Product features
Cooling method: Liquid cooling
Standby power consumption: <10 W
Communication protocol: CAN (125 kbps, 5 V level)
Address setting: Digital display and button operation
Dimensions (without handle): 460 × 300 × 120 mm (D × W × H)
Weight: ≤35 kg
MTBF: 500,000 hours

Production & test facilities (summary)
Manufacturer Tonhe uses automated SMT lines and supports mass production of charging modules. Test center includes EMC laboratory and environmental/test equipment (radiated emission/immunity, temperature & humidity chamber, AC/DC loads, power analyzers).

FAQ (selected)

• What communication protocol is used? CAN with 125 kbps baud rate and 5 V CAN voltage level.
• Do the modules support potting (glue filling)? Yes, all series support glue filling.
• Supported installation orientations: horizontal, side standing or upside down (special front panel option available for inverted installation).
• Warranty: Standard 12 months from receipt of shipment.

Technical specifications

• Model No.: TH40F10030C8L-WT
• Brand: Tonhe
• Rated output power: 40 kW
• AC input rated voltage: 400 VAC (3W + PE); operating range 270–490 VAC
• Input frequency: 50/60 Hz ±10%
• Input power factor: ≥0.99
• Overvoltage protection: 490±10 VAC
• Undervoltage protection: 270±10 VAC
• THD: ≤±5%
• Output voltage range: 300–1000 VDC
• Output current range: 0.5–133.3 A
• Constant power range: 300–1000 VDC
• Peak conversion efficiency: ≥97%
• Soft-start time: ≤3 s
• Voltage regulation accuracy: ≤±0.5%
• Short-circuit protection: self-rollback protection
• Current regulation accuracy: ≤±1%
• Current sharing imbalance: ≤±5%
• Cooling: Liquid cooling
• Standby power consumption: <10 W
• Communication: CAN (CAN bus)
• Address setting: Digital display and button operation
• Operating temperature: -40℃ to +75℃
• Relative humidity: ≤95% (non-condensing)
• Altitude: ≤2000 m (derating above 2000 m)
• Ingress protection: IP65
• Dimensions (without handle): 460 × 300 × 120 mm (D × W × H)
• Weight: ≤35 kg
• MTBF: 500,000 hours
• Running noise: 0 dB
• Useful life: >10 years
